Description

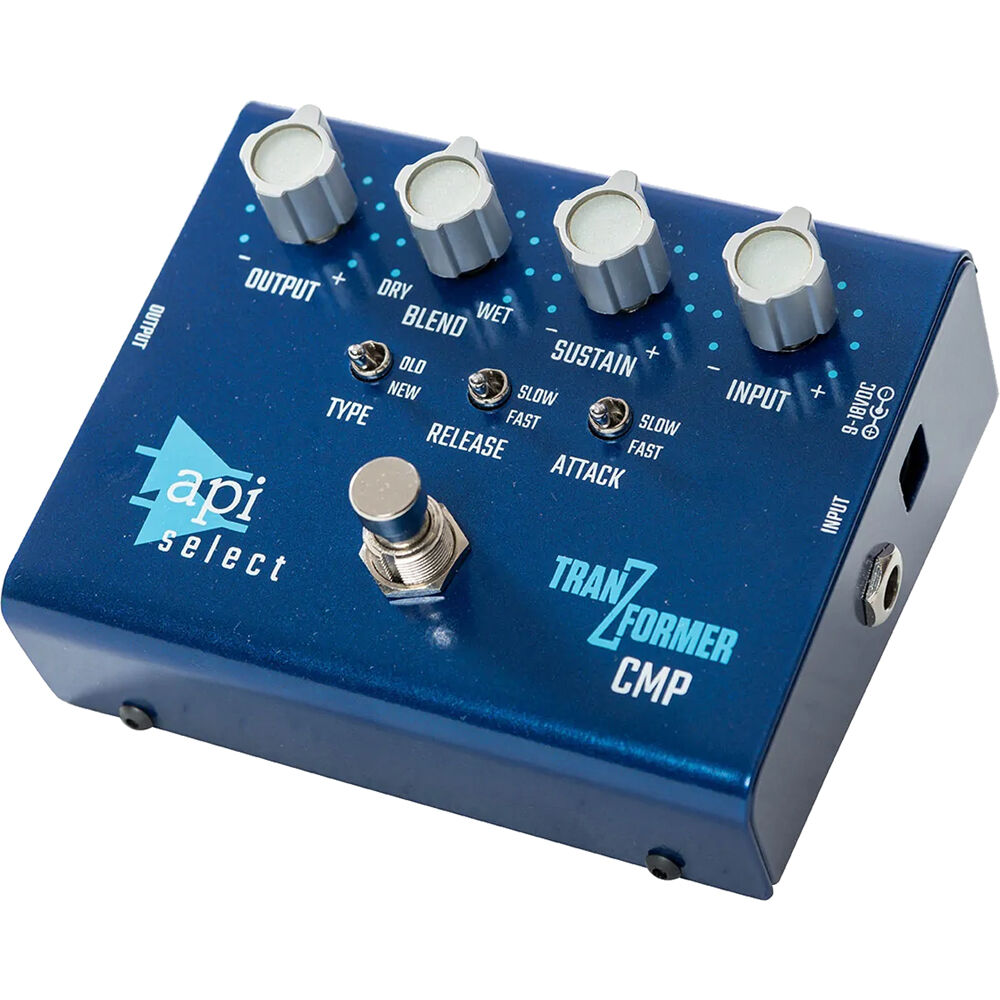

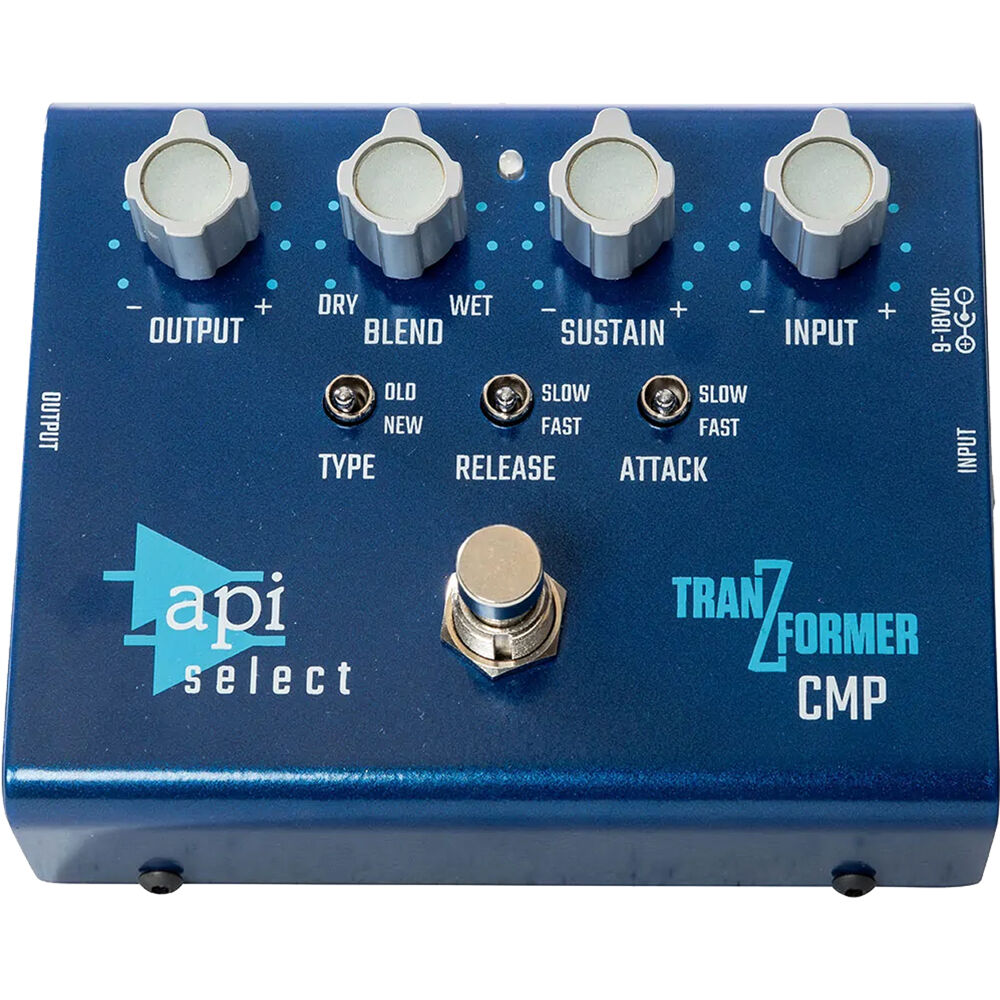

API AUDIO Compressor FloorPedal Overview
Enjoy legendary API Audio VCA-type compressor circuitry in a compact and versatile guitar pedal with the TranZformer CMP, a compressor pedal with selectable feedforward and feedback compression for a transparently modern or warm, vintage-style output, respectively. With simple two-way switches for release and attack speeds, this pedal is straightforward and intuitive.
You can switch between a 1 or 10 ms attack and a 300 ms to 1 second release. Sustain control lets you adjust the compression ratio from 1:1 to 20:1, depending on compression settings. Onboard Wet/Dry blend control allows you to engage in internal parallel compression. You can also freely adjust input gain and output levels. The bypass is buffered, propping up your signal during long cable runs or complex pedalboard setups. A custom API output transformer rounds out the analog circuitry. The TranZformer CMP can accept standard power supplies from 9 to 18 VDC, with higher voltages providing more headroom.
- Signature API output transformer
- Adjustable attack and release times with simple switches
- Wet/dry blend control for parallel compression
- Selectable feedback and feedforward compression styles
- Buffered bypass
- Classic API VCA-based analog compression circuitry
Items Included
- API AUDIO TranZformer CMP Compressor Pedal
- Limited 5-Month Manufacturer Warranty
Not Included
-
Power SuppliesEssential
Additional Resources
API AUDIO Compressor FloorPedal Specs
| Audio Circuit Type |
Analog (Solid-State)
|
| Buffer |
Buffered Bypass
|
| Input Impedance |
1 Megohm
|
| Output Impedance |
<1 Kilohm
|
| Maximum Output Level |
9 VDC: +15 dBu
18 VDC: +22 dBu |
| Gain Control |
9 to 30 dB
|
| Frequency Response |
20 Hz to 20 kHz (-0 dB, +1 dB)
|
| Audio I/O |
1x 1/4" Hi-Z/Instrument Input
1x 1/4" Hi-Z/Instrument Output |
| Power Source |
AC Adapter with Power Brick
|
| DC Input Power |
9 to 18 VDC at 100 mA
|
| Operating Current |
100 mA (Typical)
|
| Color |
Blue
|
| Material of Construction |
Metal
|
| Dimensions |
4.6 x 3.8 x 3" / 11.7 x 9.7 x 7.6 cm
|
| Weight |
1.5 lb / 0.7 kg
|
