Description
API AUDIO 3122V Overview
Sporting the same legendary circuitry as the 3124V and 3124MV, the API Audio 3122V is a rackmounted 2-channel mic preamp with variable output control and up to 68 dB of noise-free gain. Sporting both front-panel XLR-1/4" combo input jacks and rear-panel XLR mic inputs, you can flip between these two sets of inputs to handle any mic, line, or Hi-Z instrument signals.
Along with the input selection, front-panel controls include a fixed-frequency 50 Hz high-pass filter for eliminating unwanted rumble, selectable 48V phantom power per input, a polarity flip switch, and a -20 dB pad for excessively hot input signals. You also get a 3:1 output transformer tap selection, which reduces the output gain ratio from 1:3 to 1:1 (equal to approximately 10 dB). Two XLR line outputs are provided on the rear panel. The unit sports two clear, illuminated, vintage-style VU meters for keeping an eye on levels. The preamp also features a peak LED indicator. With 2520 op-amp circuitry and a custom output transformer, the 3122V delivers all the clarity, reliability, and classic API sound expected of a true API mic preamp.
Items Included
- API AUDIO 3122V 2-Channel Microphone Preamp Module
- Limited 5-Year Manufacturer Warranty
Additional Resources
API AUDIO 3122V Specs
| Input Impedance |
Mic: 1.5 Kilohms
Hi-Z: 470 Kilohms |
| Output Impedance |
<75 Ohms (Transformer Balanced)
|
| Frequency Response |
20 Hz to 40 kHz (?0.5 dB)
|
| Signal-to-Noise Ratio |
Mic: -128 dB
Hi-Z: -106 dB |
| Audio I/O |

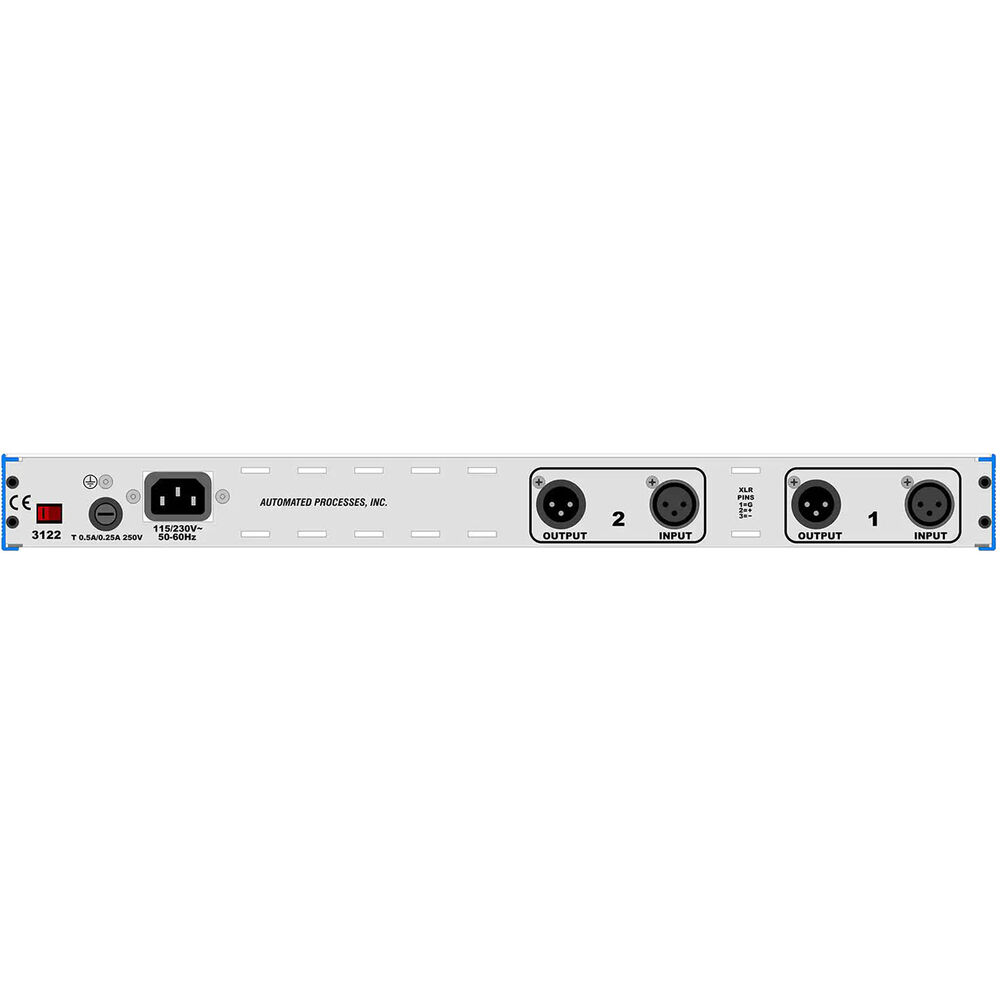

2x XLR 3-Pin Mic Input (Rear Panel)
2x Combo XLR-1/4" 3-Pin Hi-Z/Instrument/Line/Mic Input (Front Panel) 2x XLR 3-Pin Line Output (Rear Panel) |
| Power Source |
AC Input
|
| AC Input Power |
Changing Voltage Requires Manual Switching
115 to 230 VAC, 50 / 60 Hz |
| Power Consumption |
8 W
|
| Mounting |
Front: 4x Standard Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 11 x 1.75" / 48.3 x 27.9 x 4.45 cm
|
| Weight |
9 lb / 4.1 kg
|
| Package Weight |
12.665 lb
|
| Box Dimensions (LxWxH) |
22.9 x 16 x 6.6"
|
