Description
Antelope Orion Studio Synergy Core Overview
Learn from Experts
Are Antelope Audio's Edge Mics Worth It?
From Manufacturer
Discrete 4 Synergy Core - Fusion of Audio Processing Power
The New Antelope Audio Control Panel (Overview)
Jason O'Bryan (Dub Pistols) - First Impressions of the Orion Studio Synergy Core
Working The Orion Studio Synergy Core With Producer Drew Bang
Additional Resources

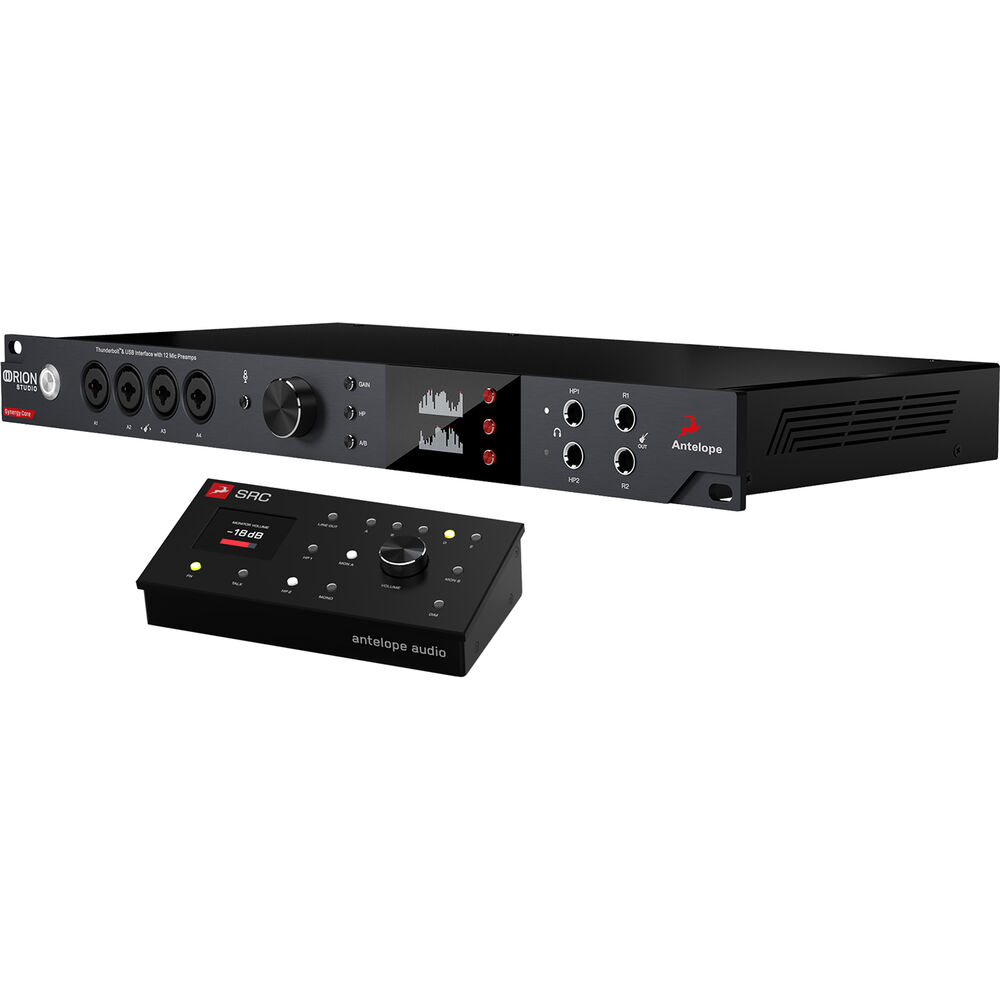

Kit Contains:
![Antelope Orion Studio Synergy Core Pro Audio Interface]()
![Antelope SRC Stereo Remote Controller]()

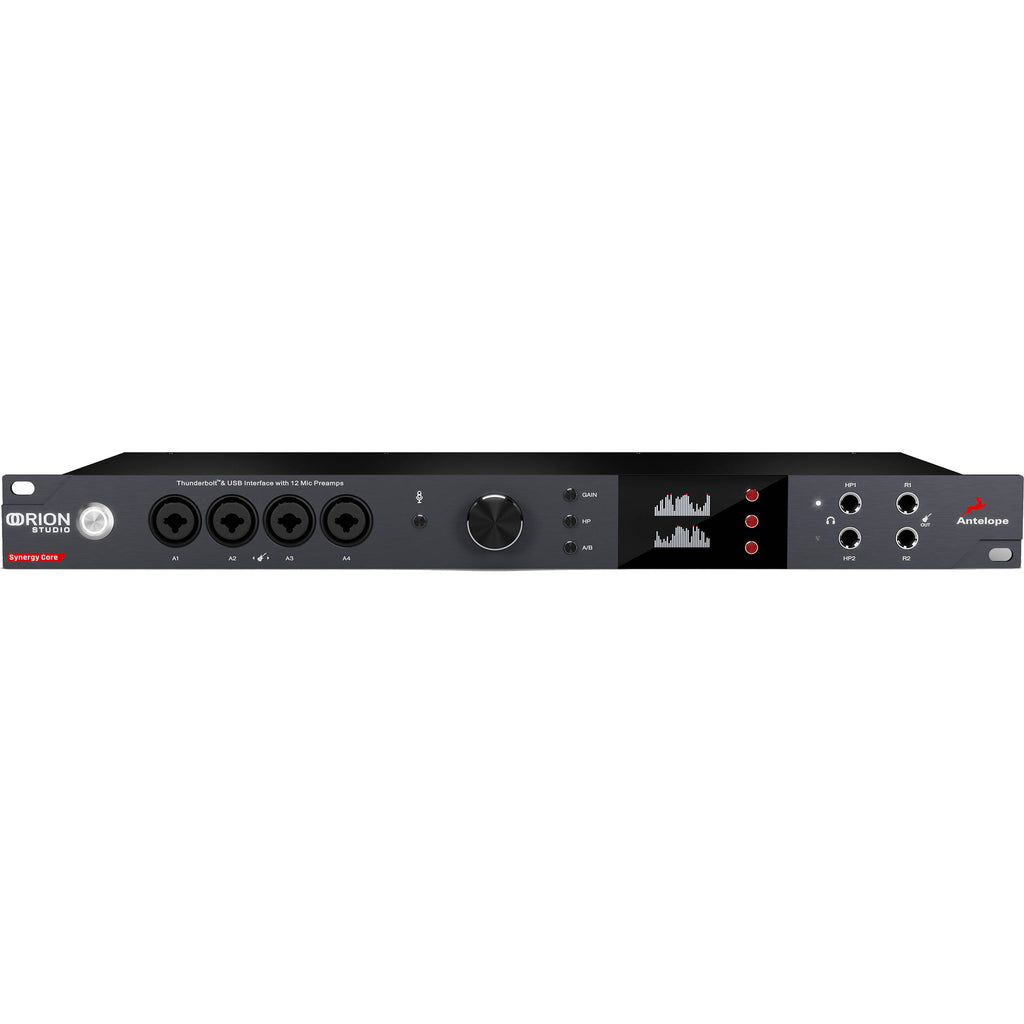

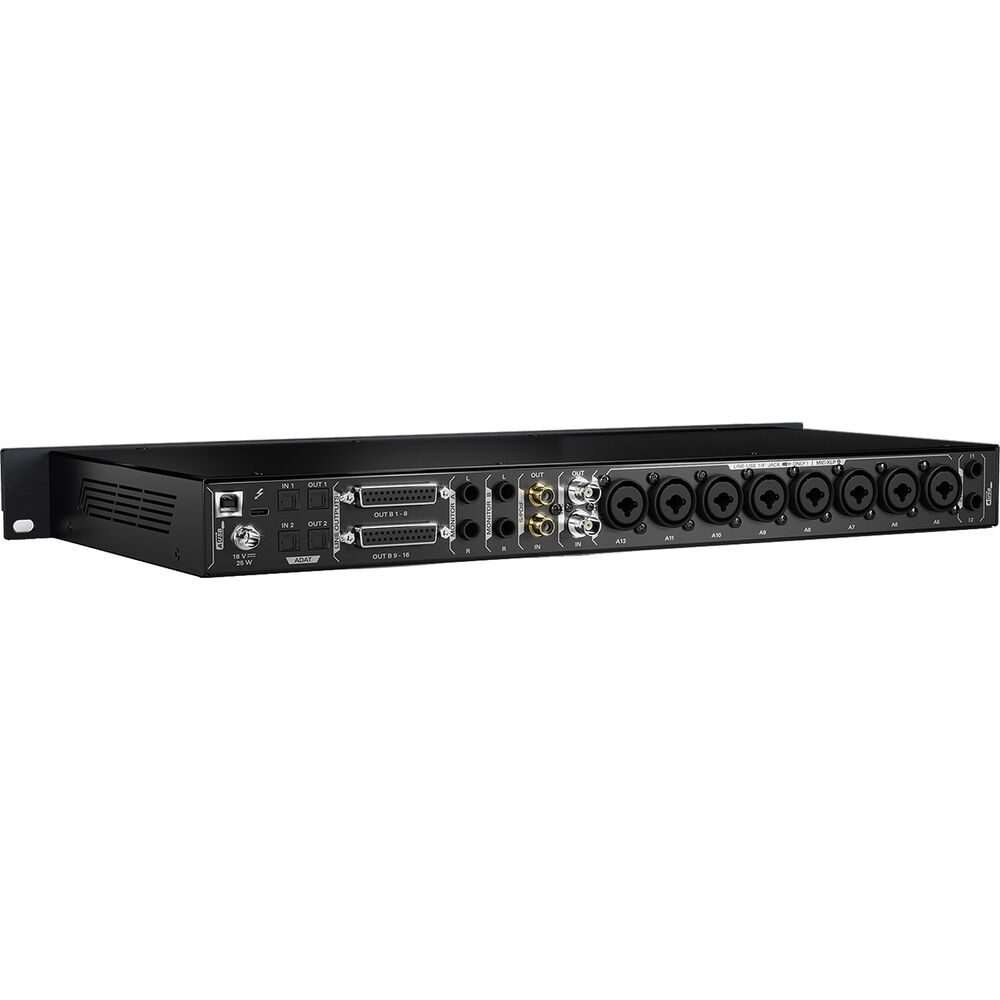

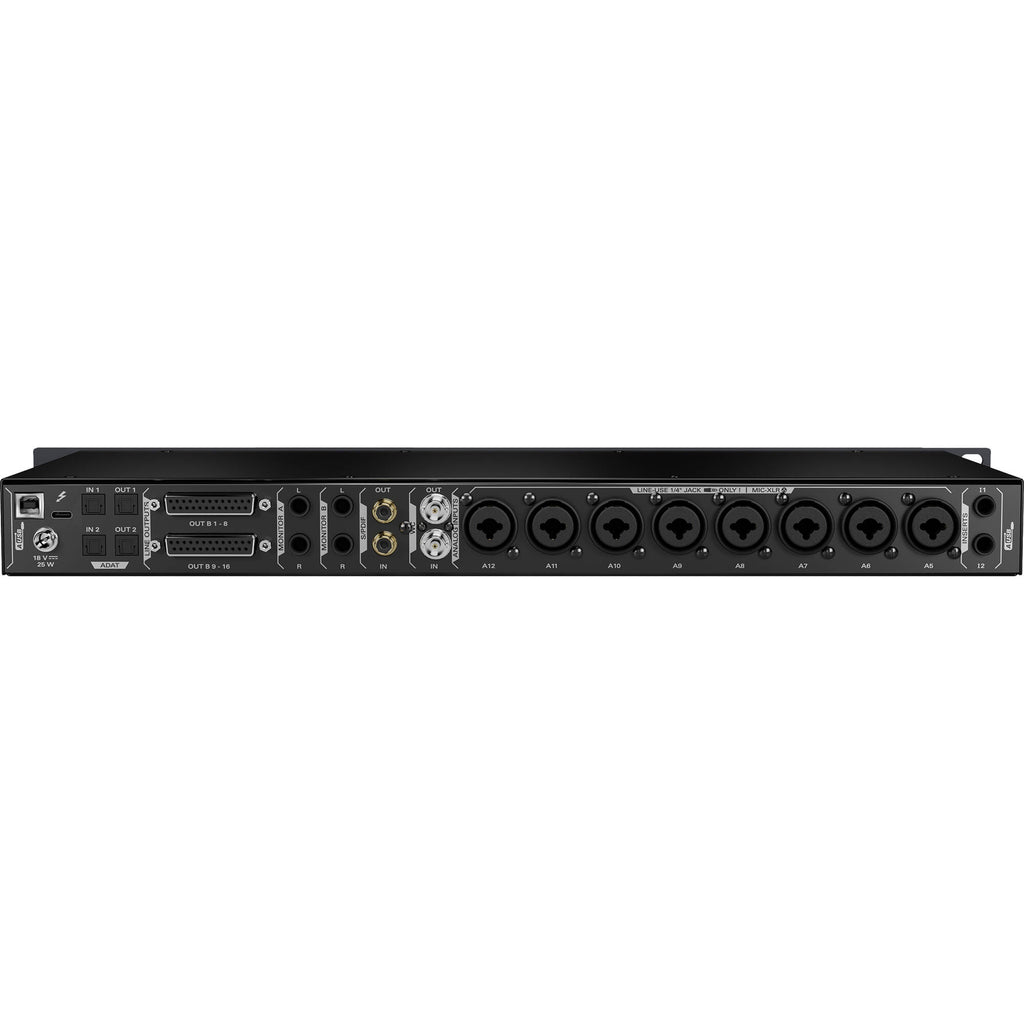

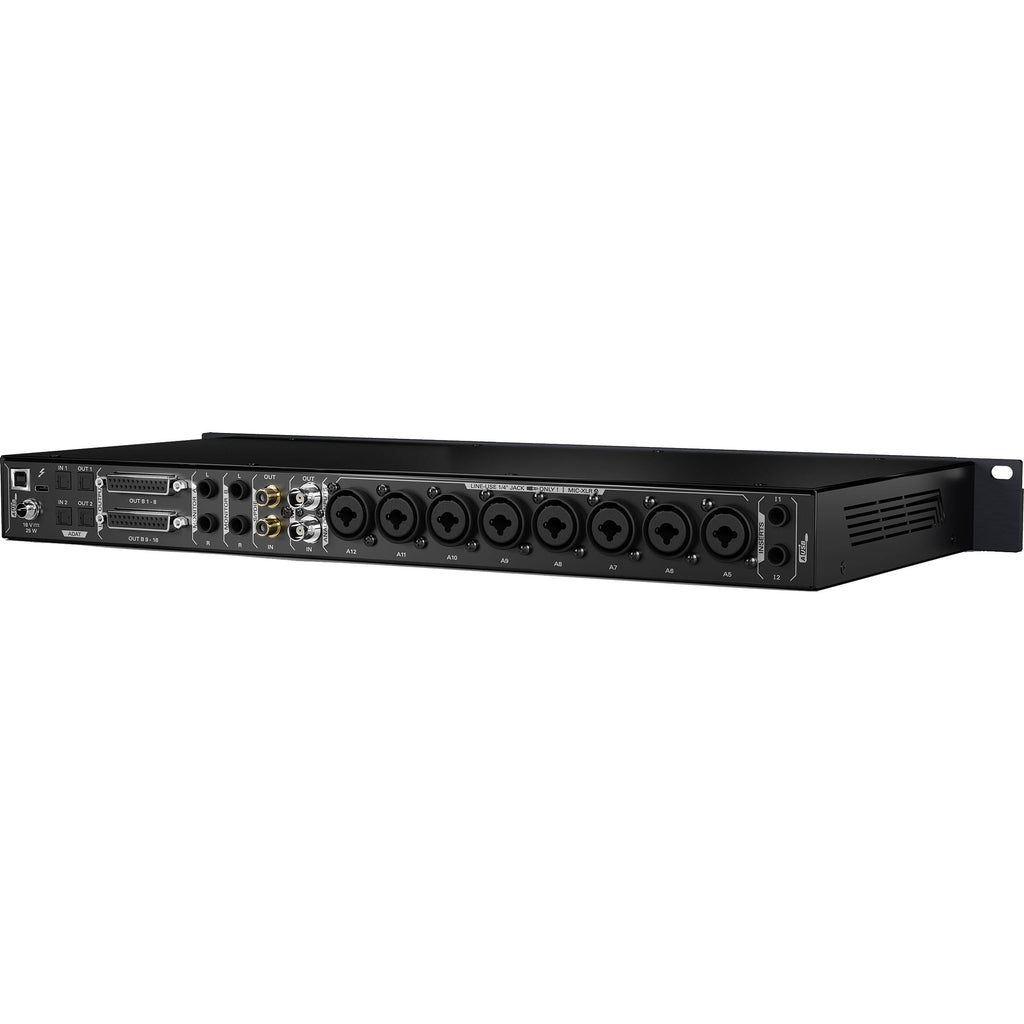

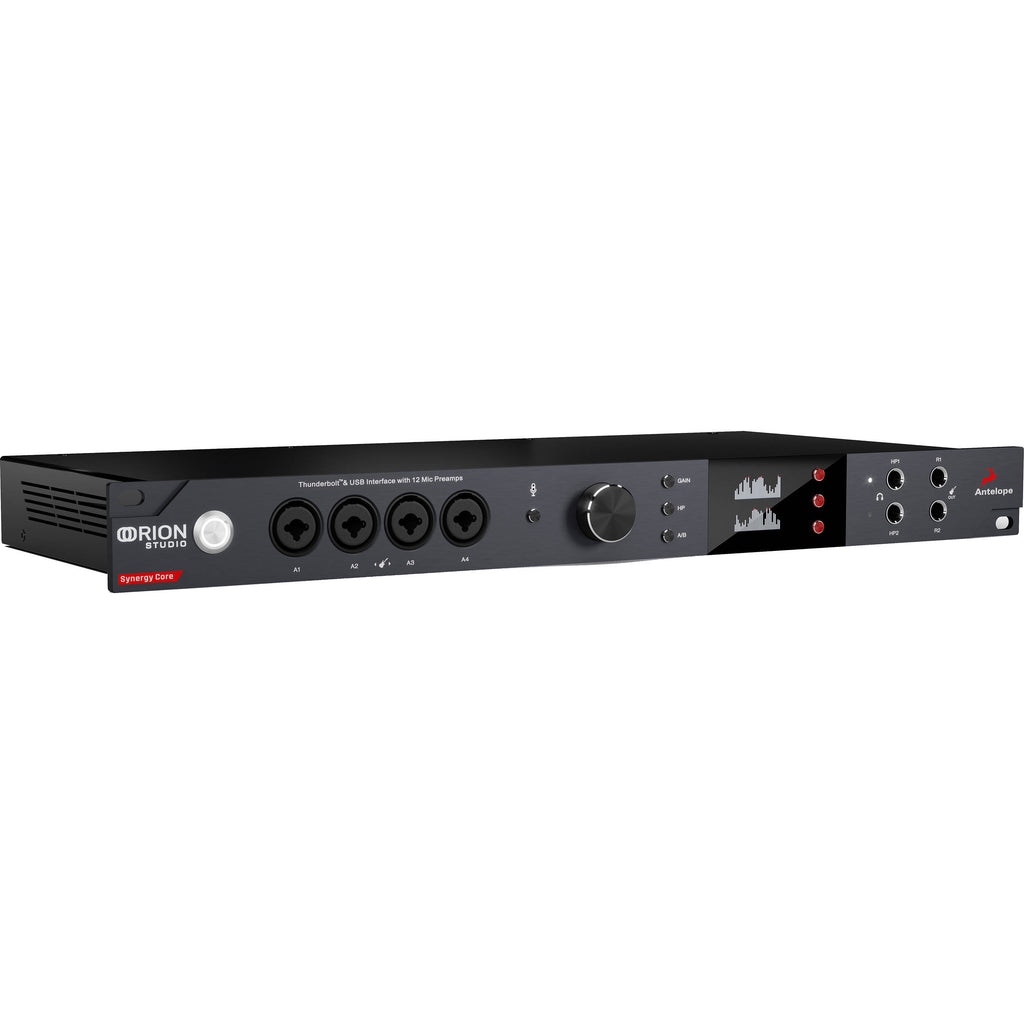

Antelope Orion Studio Synergy Core Pro Audio Interface
Key Specs
| Channels of I/O |
Thunderbolt:
32 Input / 32 Output USB: 24 Input / 24 Output Analog: 14 Input / 24 Output |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
12
|
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Mic/Line Input
4x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 2x 1/4" TRS Insert Input 2x 1/4" TRS Headphone Output 4x 1/4" TRS Monitor Output 2x 1/4" TRS Re-Amp Output 2x DB-25 Line/8-Channel Output |
| Digital Audio I/O |
2x TOSLINK Optical ADAT Input
2x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection |
1x USB-C
1x USB-B |
| Power Requirements |
AC/DC Power Adapter (Included)
|
General
| Display |
1x LCD
|
| Channels of I/O |
Thunderbolt:
32 Input / 32 Output USB: 24 Input / 24 Output Analog: 14 Input / 24 Output |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
12
|
| Built-In Microphone |
Yes
|
| Input Level Adjustment |
1x Knob
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
AD/DA Converters:
Up to 130 dB Combo XLR-1/4" Mic Inputs: 75 dB |
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Mic/Line Input
4x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 2x 1/4" TRS Insert Input 2x 1/4" TRS Headphone Output 4x 1/4" TRS Monitor Output 2x 1/4" TRS Re-Amp Output 2x DB-25 Line/8-Channel Output |
| Digital Audio I/O |
2x TOSLINK Optical ADAT Input
2x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection |
1x USB-C
1x USB-B |
| Host Connection Protocol |
Thunderbolt 3
USB 2.0 |
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
Wi-Fi
|
Performance
| Maximum Input Level |
Mic Inputs:
+18 dBu |
| Dynamic Range |
A/D Converters:
124 dB D/A Converters: 128 dB Monitor D/A Converters: 130 dB |
| THD |
Mic:
-106 dB |
| THD+N |
A/D Converters:
-112 dB D/A Converters: -115 dB Monitor D/A Converters: -115 dB |
| EIN |
Combo XLR-1/4" Mic Inputs:
-128 dBu |
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Bit Depths |
Up to 64-Bit
|
| Sync Sources |
DB-25, Internal
|
| Clocking |
Internal:
Accuracy: ?0.2 ppm |
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
macOS 10.12 or Later / Windows 10 or Later
|
| RAM Requirements |
4 GB, 8 GB Recommended
|
| Storage Requirements |
4 GB
|
| Mobile Device Compatibility |
No
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
18 VAC, 60 Hz
|
| Power Consumption |
25 W
|
Physical
| Rackmount Size |
1 U
|
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Dimensions |
19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
|
| Weight |
6.8 lb / 3.1 kg
|
Packaging Info
| Package Weight |
12.065 lb
|
| Box Dimensions (LxWxH) |
25 x 13.5 x 4.5"
|
