Description

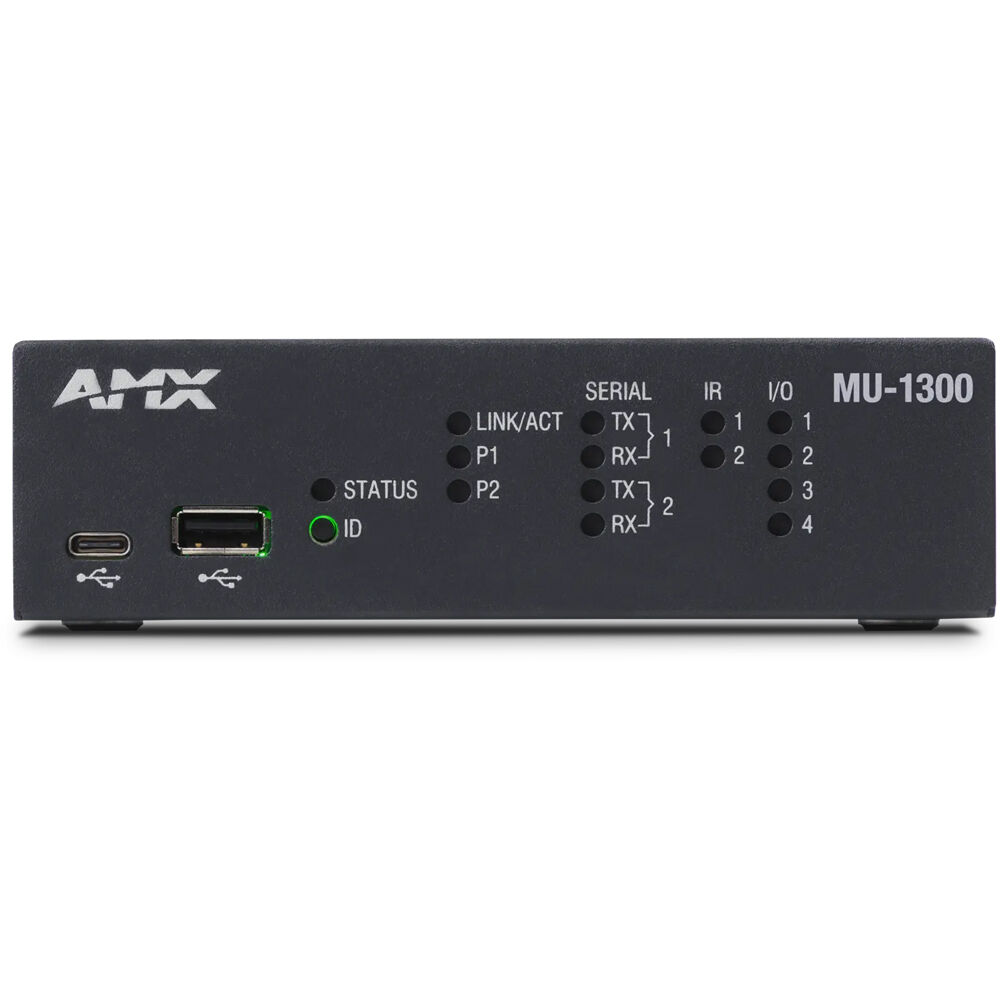

AMX MU-1300 Overview
Built to execute complex automation workflows in secure AV environment, the MU-1300 MUSE Automation Controller from AMX fits professional performance into a compact form factor. Equipped with a fast embedded processor and 4GB of DDR3 RAM, the MU-1300 can run multiple scripts simultaneously using JavaScript, Python, or Groovy. It also includes native support for Node-RED, enabling visual low-code development. With its 8GB eMMC storage and Linux operating system, the MU-1300 is as dependable as it is secure.
Integration with legacy and modern HARMAN devices is seamless with native protocol translation for HControl, ICSP, and HiQNet. Control connectivity options are expansive, including one RS-232 serial port, one RS-232/422/485 serial port, two IR/serial ports, and four I/O ports with 12 VDC output and GND. A USB-C port allows easy configuration via a connected PC, and three USB-A host ports support external storage or FLIRC IR input, all within a compact steel chassis built for concealed installation.
- Embedded processor with 4GB DDR3 RAM
- Run multiple JavaScript, Python, and Groovy scripts simultaneously
- Low-code development support with Node-RED
- Native HControl, ICSP, and HiQNet protocol translation
- Open API for third-party integration

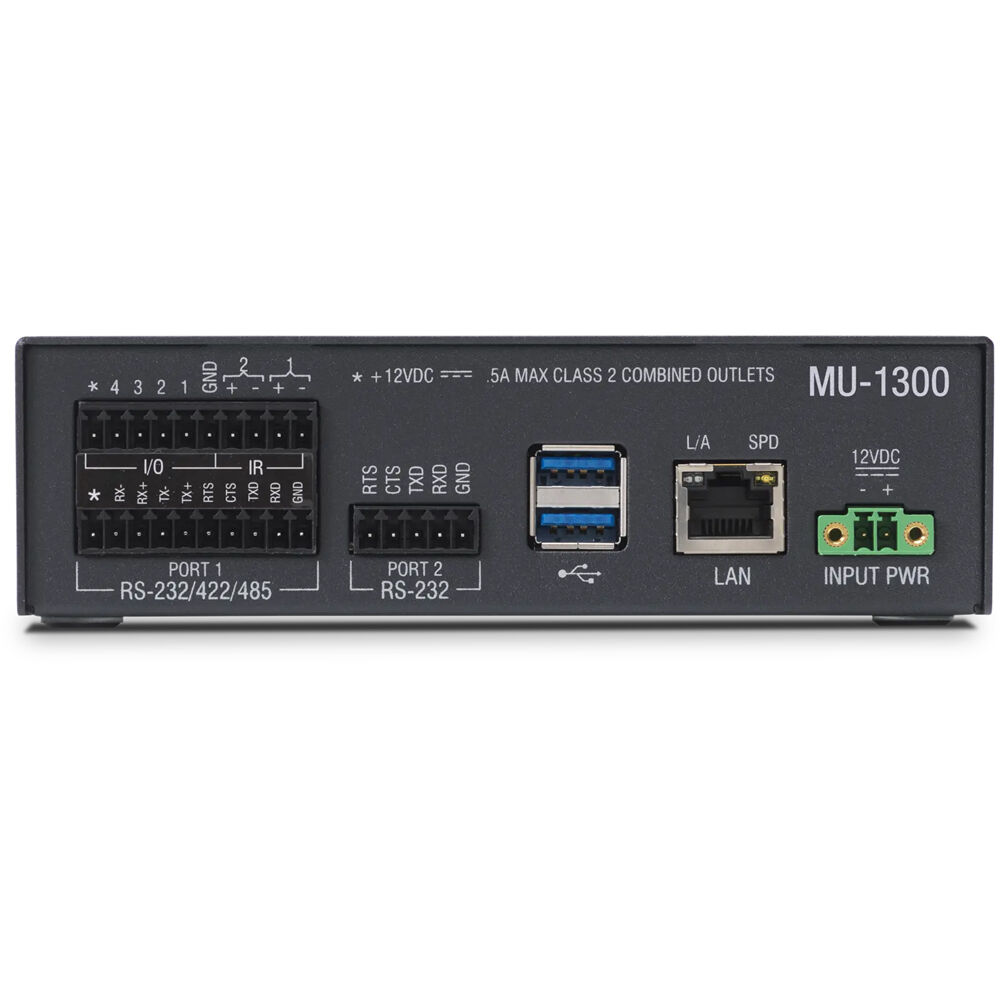

- 4-pin 3.5mm Phoenix terminal with 2 IR/serial outputs
- 6-pin 3.5mm Phoenix terminal with 4 I/O ports, 12 VDC output, and GND
- 5-pin 3.5mm Phoenix terminal with RS-232 serial control port
- 10-pin 3.5mm Phoenix terminal with RS-232, 422, and 485 serial control port
- RJ45 LAN port for Ethernet communication
- USB-C port for PC configuration and virtual terminal access
- 3 USB-A host ports for external storage or FLIRC IR input
- 5.8 x 5.2 x 1.7" powder-coated steel enclosure
- Built on HARMAN�s secure Linux platform
- Factory reset button for safe rollback during setup
- Input power of 12 VDC up to 26W via 2-pin 3.5mm Phoenix terminal
Items Included
- AMX MU-1300 MUSE Automation Controller with 2 Serial, 2 IR/S & 4 I/O Ports
- AMX IR LED Cable with 3.5mm Phoenix
- 2-Pin 3.5mm Phoenix Power Connector
- 6-Pin 3.5mm Phoenix I/O Connector
- 5-Pin 3.5mm Phoenix RS-232 Connector
- 10-Pin 3.5mm Phoenix RS-232/422/485 Connector
- Limited 3-Year Manufacturer Warranty
Additional Resources
AMX MU-1300 Specs
| USB I/O |
1 x USB-C Female Input
3 x USB-A Female Input/Output |
| Internal Storage |
8 GB
|
| Other I/O |
1x RJ45 LAN Communication Port
1x Block 4-Pin Terminal with 2 IR/Serial Outputs 1x Block 6-Pin Terminal with 4 I/O, 12 VDC Output & GND 1x Block 5-Pin RS-232 Serial Control Port 1x Block 10-Pin RS-232/422/485 Serial Control Port |
| Power Source |
DC Input (Built-In)
|
| DC Input Power |
9 to 18 VDC at 2.2 A
|
| Power Consumption |
26 W (Maximum)
|
| Color |
Gray
|
| Material of Construction |
Steel
|
| Certifications |
CE EN 55032, CE EN 55035, CE EN 62368-1, ICES 003, IEC 62368-1, RoHS, UL 62368-1, VCCI CISPR 32, WEEE
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 5 to 85% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 5 to 85% Humidity
|
| Dimensions |
5.8 x 5.2 x 1.7" / 14.7 x 13.1 x 4.2 cm
|
| Weight |
1.6 lb / 718 g
|
