Description

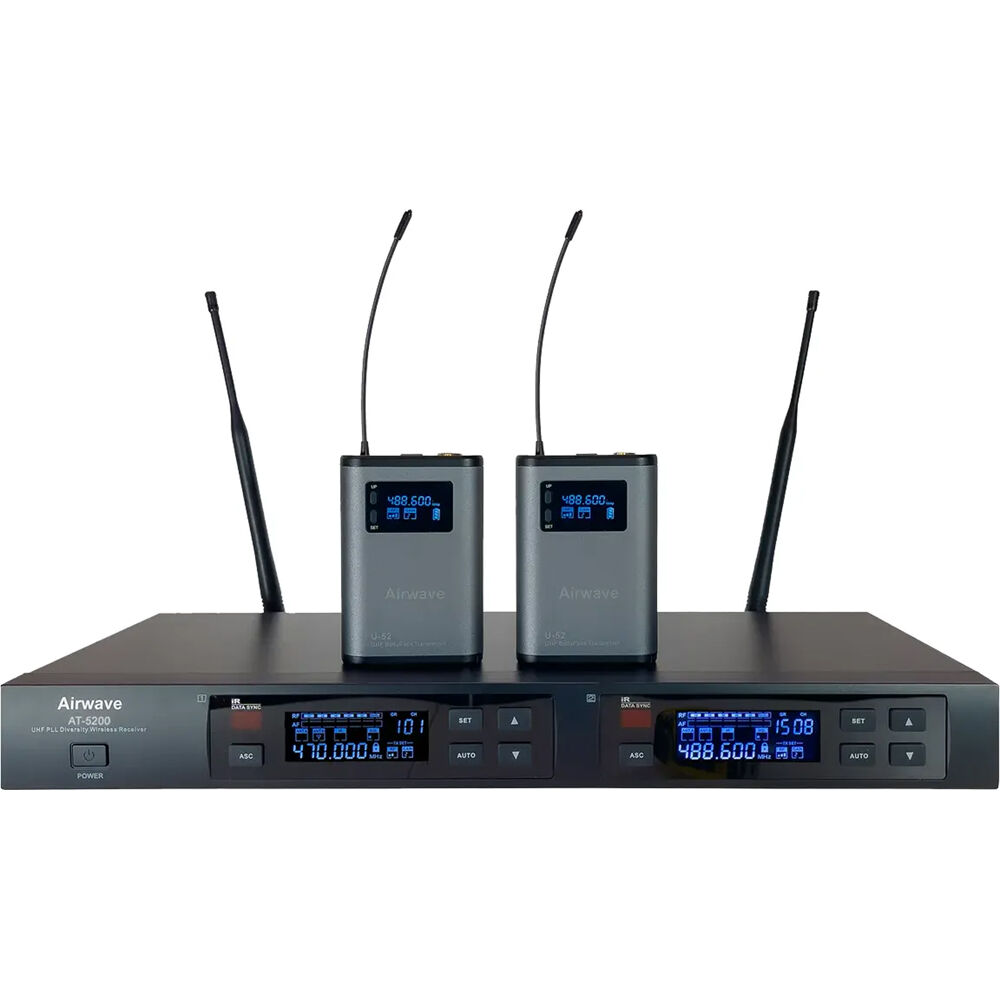

Airwave Technologies AT-5220 Overview
The Airwave Technologies AT-5220 is a 5th-generation, dual-channel digital wireless lavalier microphone system engineered for professional audio applications, including live events, conferences, performances, schools, theaters, and houses of worship. Designed for two performers or presenters, it includes two lightweight bodypack transmitters, each equipped with a lavalier microphone, and a dual-channel receiver optimized for rackmounting in portable flight cases or permanent installations.
With intuitive, user-friendly features, the AT-5220 delivers reliable wireless performance and crystal-clear digital audio at distances of up to 328', making it an ideal solution for presenters, educators, meeting participants, clergy, performers, and lecturers alike.

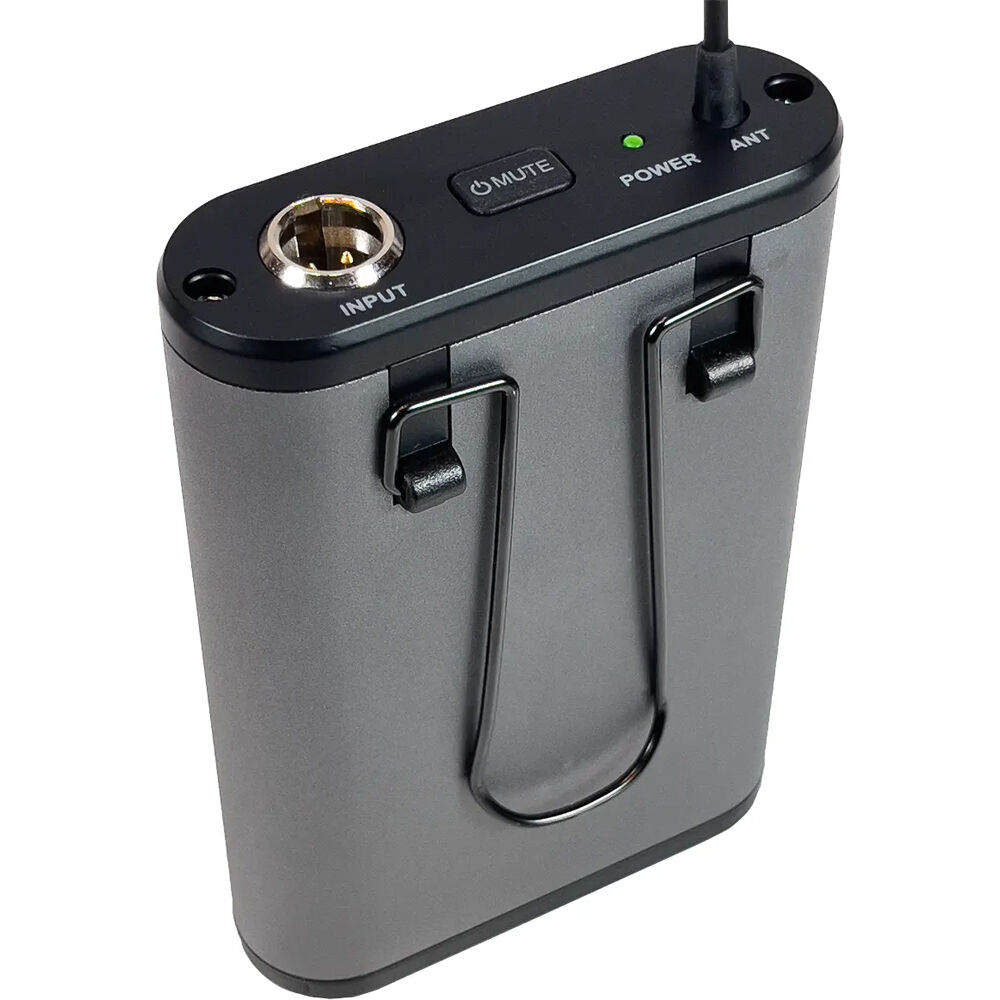

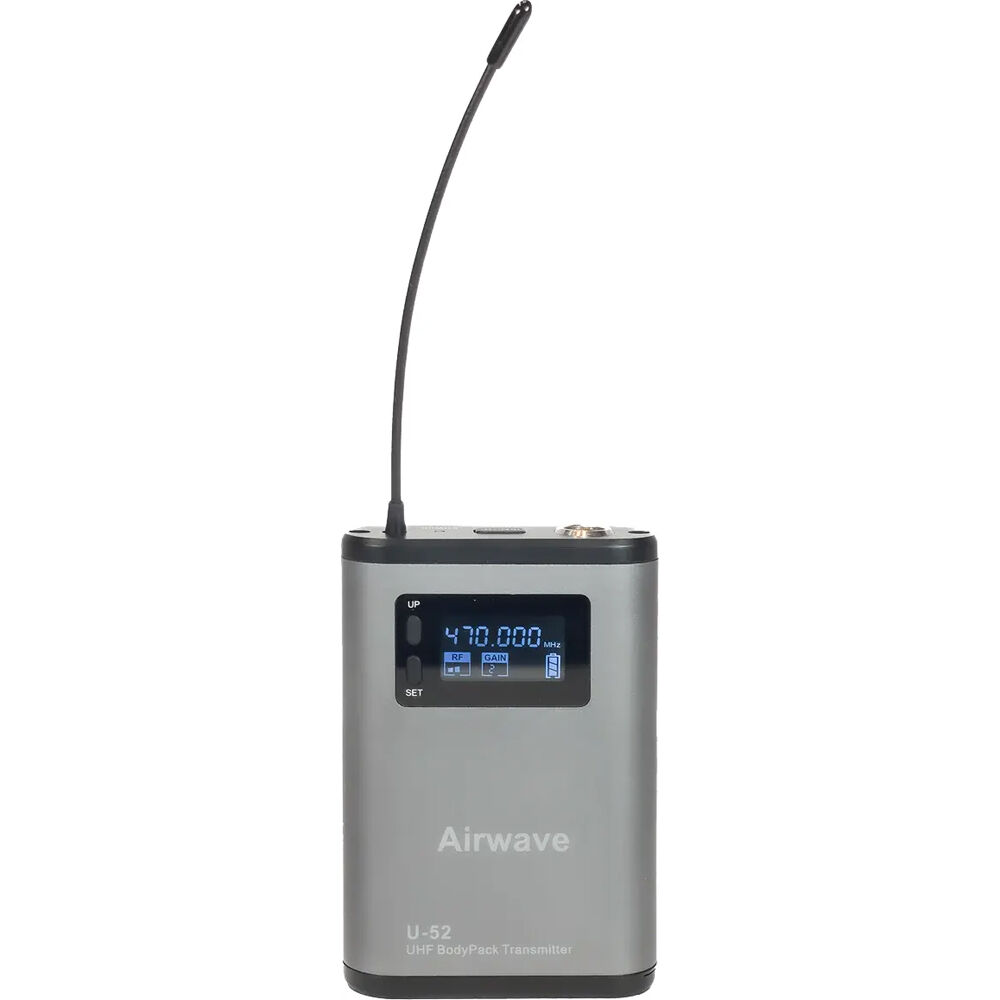

Two U-52 Bodypack Transmitters with Lav Mics for Hands-Free Presentations
- The U-52 bodypack transmitters combine a lightweight, ergonomic design with user-friendly functionality. Each unit features a clear LCD screen that displays key operational information at a glance.

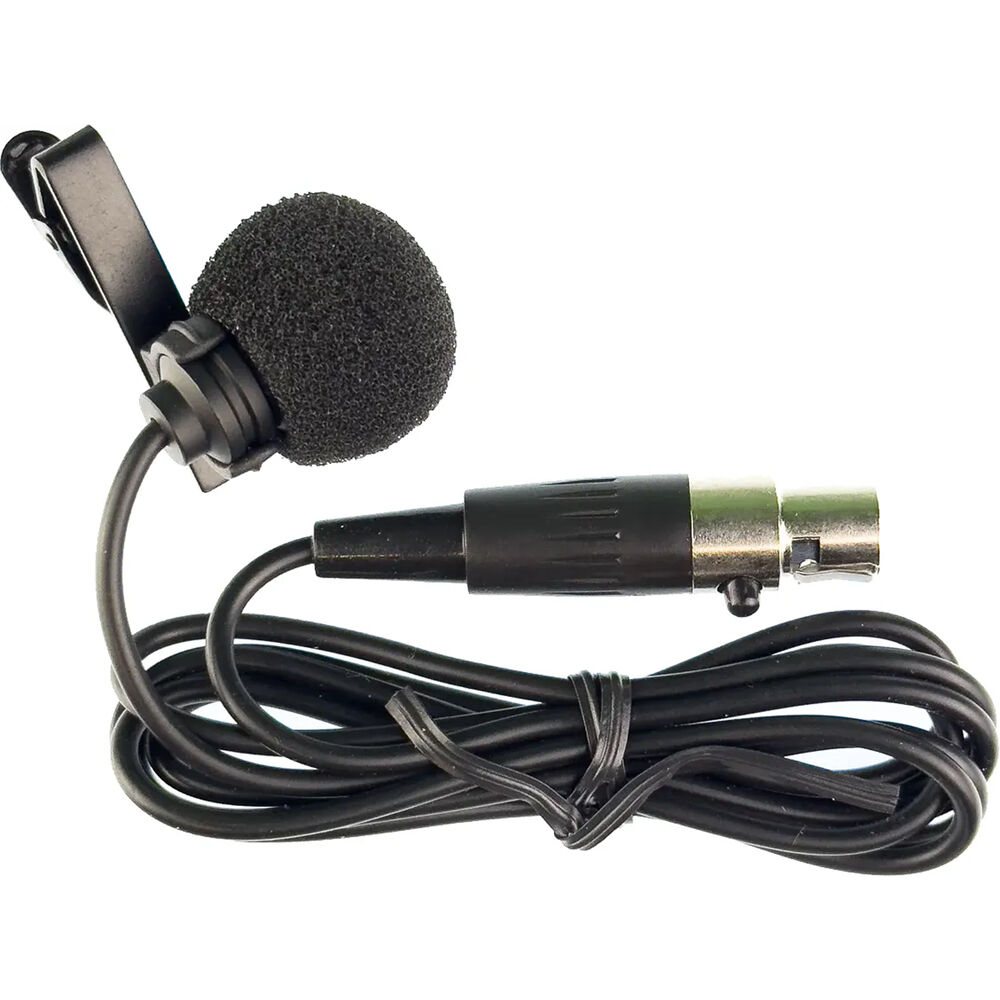

- Each bodypack transmitter comes with a lavalier microphone, providing hands-free speech for two performers or presenters.

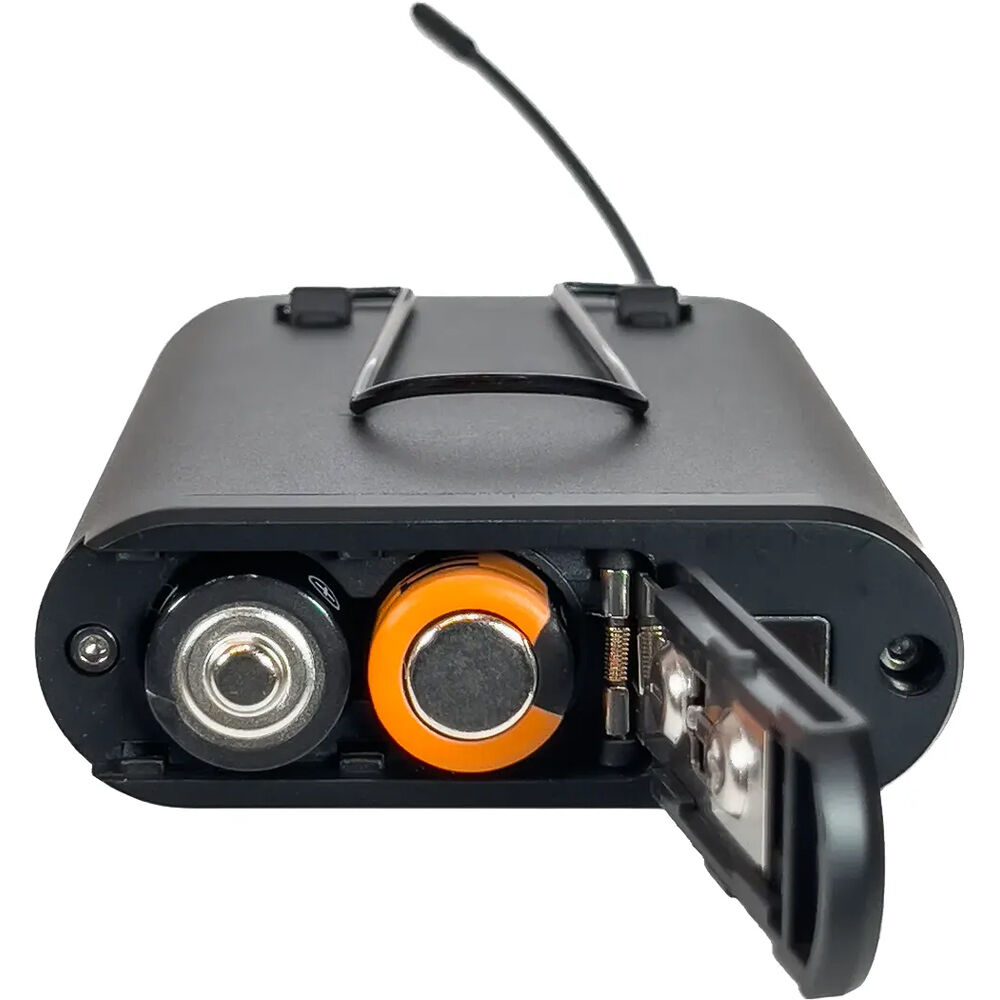

- Each transmitter runs for up to 10 hours on two AA batteries and offers selectable RF output power levels (2, 10, or 30mW), allowing for reliable performance, even in difficult RF environments. The wireless range extends up to 328', providing flexibility for larger venues.
- For added convenience, the power switch doubles as a mute function.

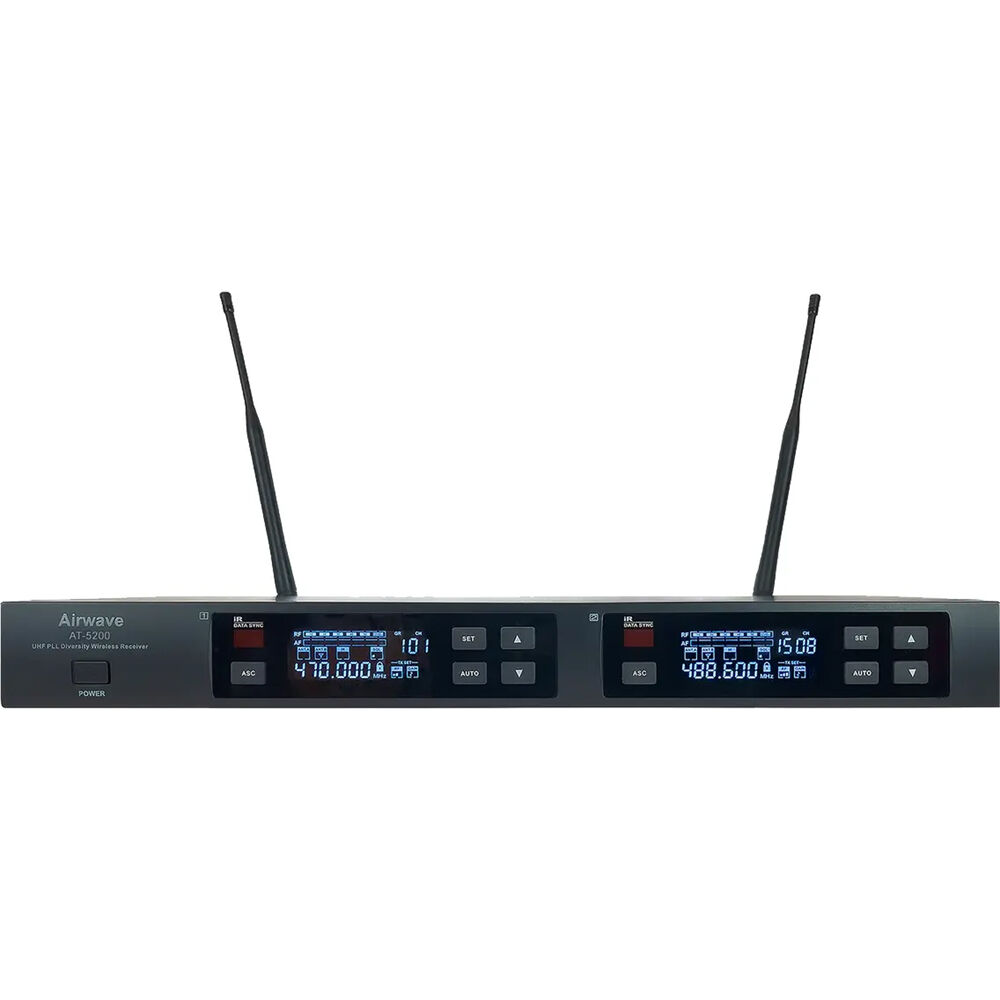

AT-5200 Dual-Channel Wireless Microphone Receiver

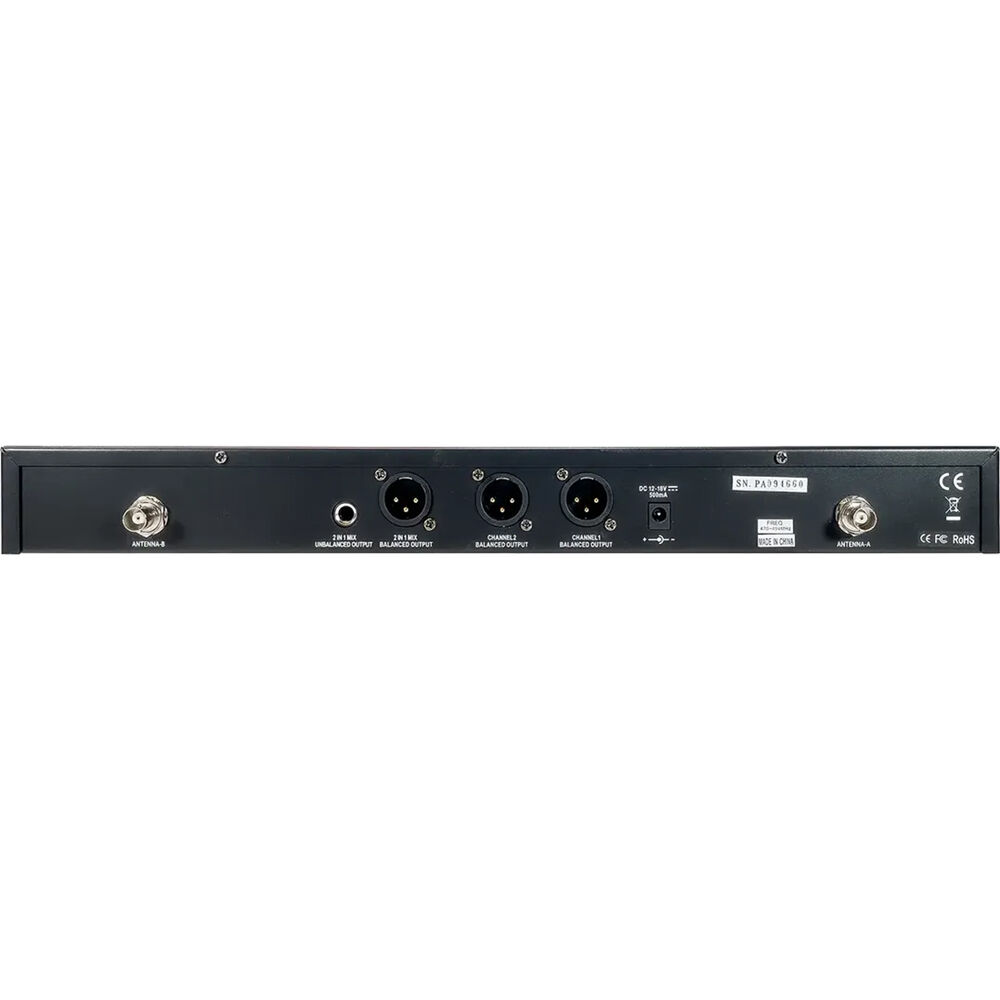

- The AT-5200 is a professional-grade, dual-channel wireless receiver housed in a rackmount chassis. It features two independent LCD displays showing RF signal strength, battery status, and audio output levels. Each channel offers 63 dB of gain control, along with individual balanced XLR outputs. A mixed-channel output is also available via both XLR and 1/4" connectors.
- Equipped with two detachable antennas and an automatic frequency scan function, the AT-5200 scans 144 frequencies to locate and lock onto the clearest available channels. Synchronizing the receiver with the bodypack transmitters is quick and seamless via infrared pairing.
System Configuration Guidelines:
- For setups using up to 2 receivers (4 channels), no antenna combiner is required under normal conditions.
- For larger systems using 3 to 5 receivers (6 to 10 channels), an approved antenna combiner is strongly recommended for optimal performance.
UPC: 850054466396
Items Included
- Airwave Technologies AT-5220 2-Person Digital Wireless Lavalier Microphone System (B: 514 to 542 MHz)
- 2 x AT-U52 Bodypack Transmitter
- 2 x LAV-2 Lavalier Microphone
- AT-5200 Dual-Channel Wireless Receiver
- 2 x Receiver Antenna
- 4 x AA Battery
- AC Power Adapter
- Antenna Front-Mount Kit (Cables, BNC Connectors)
- 2 x Rack Ears with Screws
- Limited 1-Year Manufacturer Warranty
Not Included
-
XLR CablesEssential
Additional Resources
Airwave Technologies AT-5220 Specs
Key Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Non-Diversity
|
| Max Operating Range |
328' / 100 m
|
| Receiver Type |
1x Rackmount (19")
|
| Number of Audio Channels |
2
|
| Included Transmitters |
2x Bodypack
|
| Microphone Type |
2x Lavalier
|
| Included Charging Case |
No
|
System
| Wireless Technology |
Digital UHF
|
| Diversity |
Non-Diversity
|
| RF Frequency Band |
B: 514 to 542 MHz
|
| Number of RF Channel Frequencies |
144
|
| Max Operating Range |
328' / 100 m
|
| Max Transmitters per Band |
1
|
| Dynamic Range |
102 dB
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
Receiver
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
2
|
| Audio I/O |
1x 1/4" TRS Unbalanced Output
3x XLR 3-Pin Balanced Output |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Display |
LCD (Non-Backlit)
|
| Power Requirements |
AC/DC Power Adapter
|
Transmitters
| Included Transmitters |
2x Bodypack
|
| RF Output Power |
2 / 10 / 30 mW
|
| Antenna |
Fixed
|
| Input Level |
Microphone
|
| Audio I/O |
1x TA3M/Mini-XLR 3-Pin Male Input
|
| Bias/Plug-In & Phantom Power |
N/A - No External Mic Support
|
| USB I/O |
No
|
| Muting |
Mute Switch
|
| Gain Range |
0 to +63 dB (1 dB Steps)
|
| Auto-Level/Gain |
No
|
| Frequency Response |
50 Hz to 15 kHz
|
| Sync Method |
IR
|
| Display |
LCD (Non-Backlit)
|
Microphones
| Microphone Type |
2x Lavalier
|
| Polar Pattern |
Unidirectional
|
| Frequency Response |
50 Hz to 15 kHz
|
| Color |
Black
|
Power
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
10 Hour
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 VDC at 0.5 A (Included)
|
Physical
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
16.1 x 6.2 x 1.7" / 40.9 x 15.7 x 4.3 cm Transmitter: 9.8 x 1.9" / 24.9 x 4.8 cm |
| Weight |
Receiver:
3.8 lb / 1.7 kg Transmitter: 12.7 oz / 360 g |
Packaging Info
| Package Weight |
6.77 lb
|
| Box Dimensions (LxWxH) |
20.4 x 15.5 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
