Description

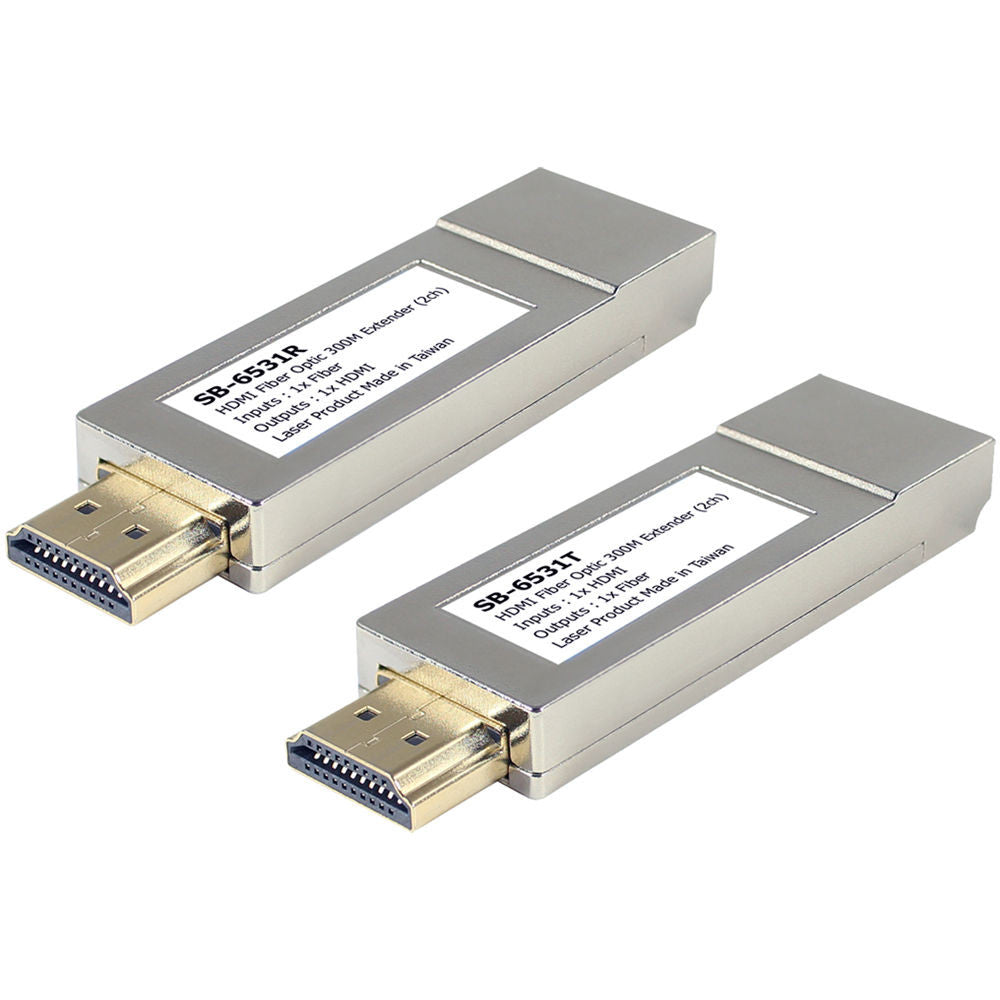

The SB-6531KIT 4K UHD HDMI over Dual LC Multimode Fiber Optic Extender Kit from Shinybow includes a compact transmitter and receiver that allow you to send uncompressed HDMI signals up to 984' over multimode duplex LC fiber optic cable. It is ideal for remote camera shoots, digital projection system, HDTV streams to multiple locations, and other applications using HDMI equipment that require long cable runs. The transmitter and receiver utilize simplified LC connectors and are powered over USB. Two USB power cables and one external USB power supply are included. The external power supply can be used to power either the transmitter or receiver for source/display devices that do not have a USB port.
- Key Features
-
- Extend HDMI signals up to 984' over duplex LC multimode fiber optic cables
- Supports Ultra HD resolutions and HD resolutions up to 720p/1080i/1080p at 60 Hz
- Uncompressed video and audio for no quality loss
- Supports DDC/EDID/HDCP transmission
- Compact form factor for ease of use and installation
- Transmitter and receiver powered from USB port (500mAh)
- Power/link LED indicator light
- Two USB charging cables and one USB power supply included
| Interface | Transmitter Input: 1 x HDMI, male Output: 1 x Fiber (multimode duplex LC) Receiver Input: 1 x Fiber (multimode duplex LC) Output: 1 x HDMI, male |
| Fiber Wavelength | 850 nm |
| Fiber Distance Support | OM1 (62.5/125 ?m) Cable: 108' (33 m) OM2 (50/125/62.5 ?m) Cable: 270' (82 m) OM3 (50/125 ?m) Cable: 984' (300 m) |
| Protocols and Standards Compliance | DDC, EDID, HDCP |
| Power Input | USB (On transmitter and receiver) |
| Power Consumption | 5 VDC, 0.3 A |
| Operating Temperature | 32 to 140°F (0 to 60°C) |
| Relative Humidity | 0 to 95%, Non-condensing |
| Dimensions | 2.6 x 0.9 x 0.4" (6.6 x 2.4 x 1.1 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.8 lb |
| Box Dimensions (LxWxH) | 6.2 x 3.5 x 2.7" |

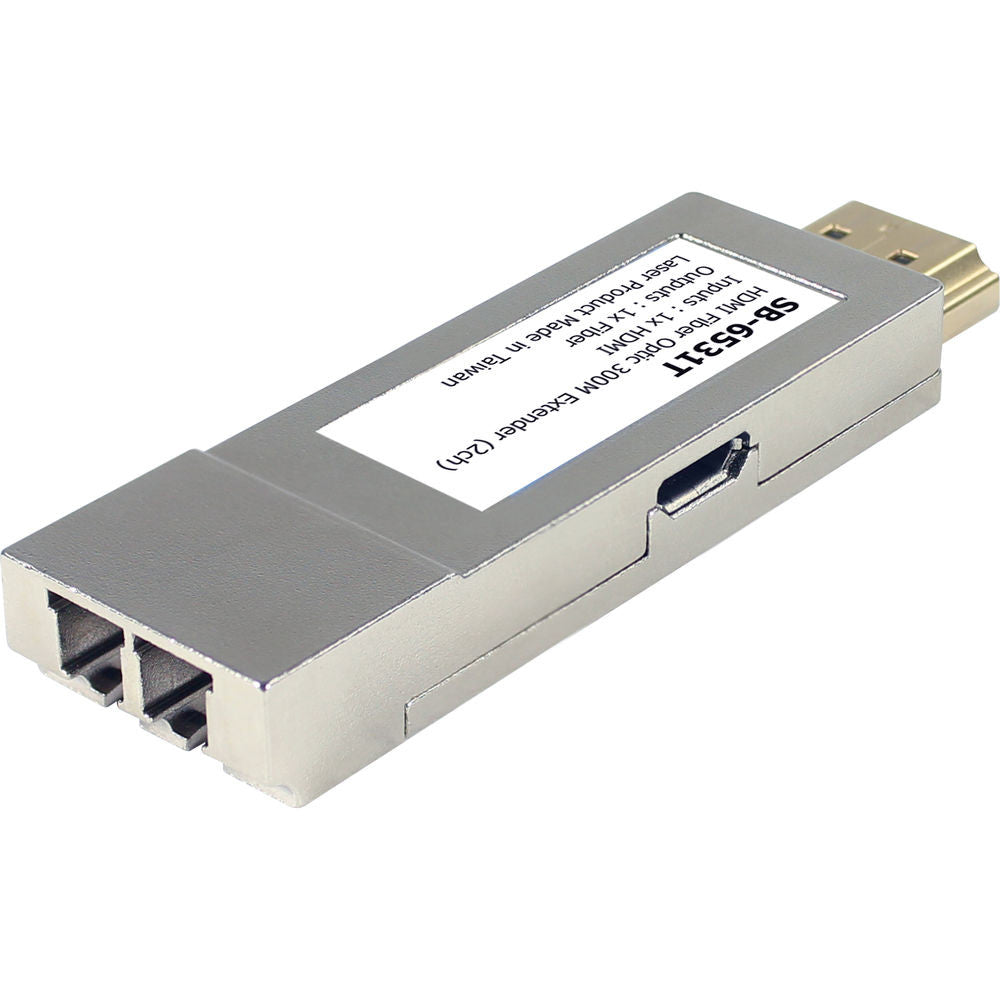

- SB-6531T HDMI to Fiber Transmitter
- SB-6531R Fiber to HDMI Receiver
- 2 x USB Power Cable
- 5 VDC USB Power Supply
- Limited 3-Year Warranty
