Description

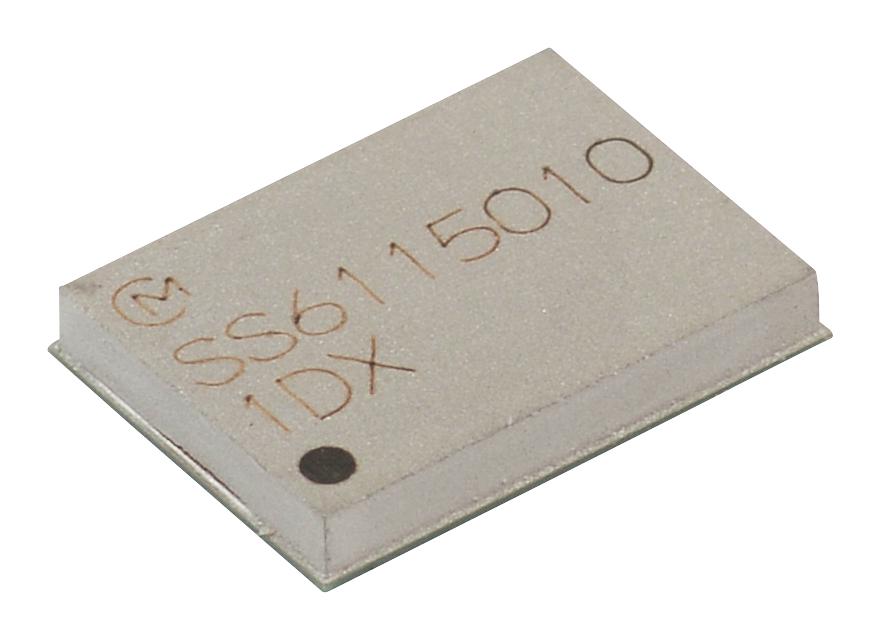

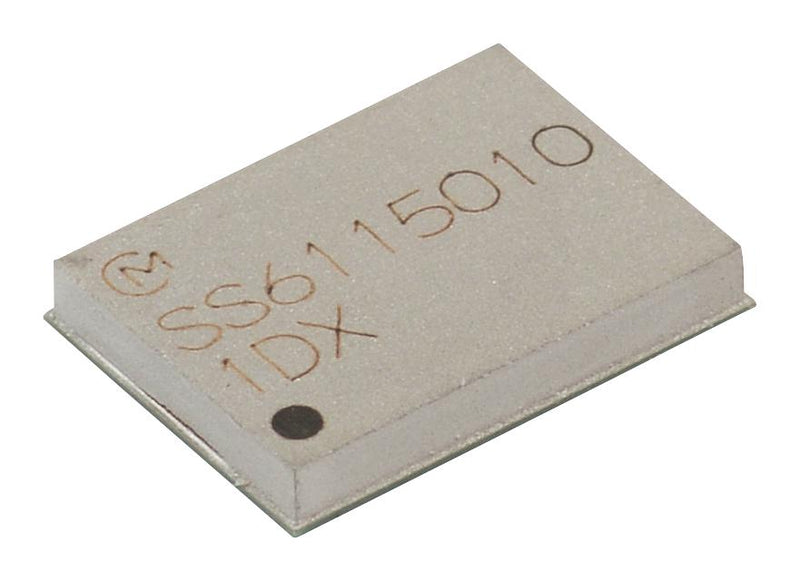

This is a RF Transceiver, 2.4GHz to 2.4835GHz, 3Mbps, 17dBm out, -89dBm in, 3V to 4.8V, LGA-46 product from MURATA with the model number LBEE5KL1DX-883
Product details
| Frequency Min | 2.4GHz |
| Frequency Max | 2.4835GHz |
| RF / IF Modulation | - |
| Data Rate | 3Mbps |
| Receiving Current | 47mA |
| RF IC Case Style | LGA |
| No. of Pins | 46Pins |
| Supply Voltage Min | 3V |
| Supply Voltage Max | 4.8V |
| Transmitting Current | 320mA |
| Output Power (dBm) | 17dBm |
| Sensitivity dBm | -89dBm |
| RF Transceiver Applications | Wireless Connectivity |
| Operating Temperature Min | -30°C |
| Operating Temperature Max | 70°C |
| Product Range | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | MURATA |
| Part Number | LBEE5KL1DX-883 |
| Quantity | Each |
| Technical Data Sheet EN |  |
