Description
The TOP253PN is a 15W integrated Off-Line Switcher with advanced feature set and extended power range. This enhanced EcoSmart� switcher incorporates a 700V power MOSFET, high voltage switched current source and PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
- Multi-mode operation maximizes efficiency at all loads
- Low height is ideal for adapters where space is limited
- Line under-voltage detection prevents turn-OFF glitches
- Line over-voltage shutdown extends line surge limit
- Accurate programmable current limit
- Heat sink is connected to source for low EMI
- Fully integrated soft-start for minimum start-up stress
Applications
Consumer Electronics, Industrial
Product details
| Operating Temperature Min | -40�C |
| Input Voltage AC Max | 265V |
| Operating Temperature Max | 150�C |
| No. of Pins | 8Pins |
| Input Voltage AC Min | 85V |
| Product Range | - |
| Topology | Flyback |
| AC / DC Converter Case Style | DIP |
| Power Rating | 25W |
| Packaging | Cut Tape |
| MSL | - |
Other details
| Brand | POWER INTEGRATIONS |
| Part Number | TOP253PN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

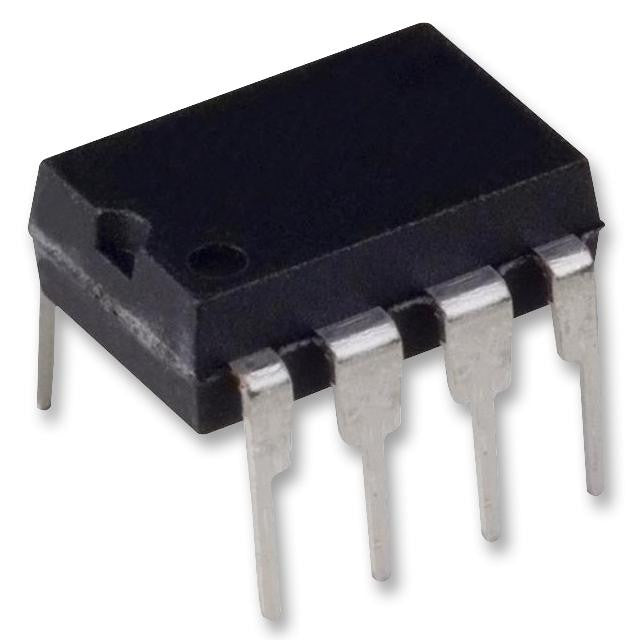

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
