Description

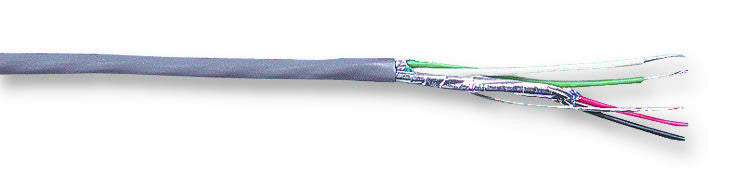

The 8723 from Belden is a multi conductor shielded twisted pair cable. This cable is approved by UL standard.
- 22AWG stranded (7x30) tinned copper conductors
- Polypropylene insulation
- Individual Beldfoil shielding (100% coverage)
- Polyvinyl chloride (PVC) outer jacket
- Overall nominal diameter of 0.160inch
- Operating temperature range from -20°C to 75°C
- Nominal characteristic impedance of 52ohm
- Nominal conductor DC resistance (DCR) of 14.7ohm/1000ft
- Maximum operating voltage of 300Vrms (according to UL)
- Maximum recommended current of 2.3A per conductor at 25°C
Applications
Industrial
Product details
| Reel Length (Metric) | - |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 4.064mm |
| No. of Pairs | 2 Pair |
| Voltage Rating | 300V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 22AWG |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 30AWG |
| Conductor Area CSA | 0.325mm² |
Other details
| Brand | BELDEN |
| Part Number | 8723 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
