Description
Cambo Actus-G Overview
has crafted this Cambo ACTUS-GFX View Camera Body with 20mm Lens Kit to be ready out of the box for use with a FUJIFILM GFX System. It includes a high performance 20mm lens designed specifically for the ACTUS system, and all the necessary acessories to start creating breathtaking images right out of the box.

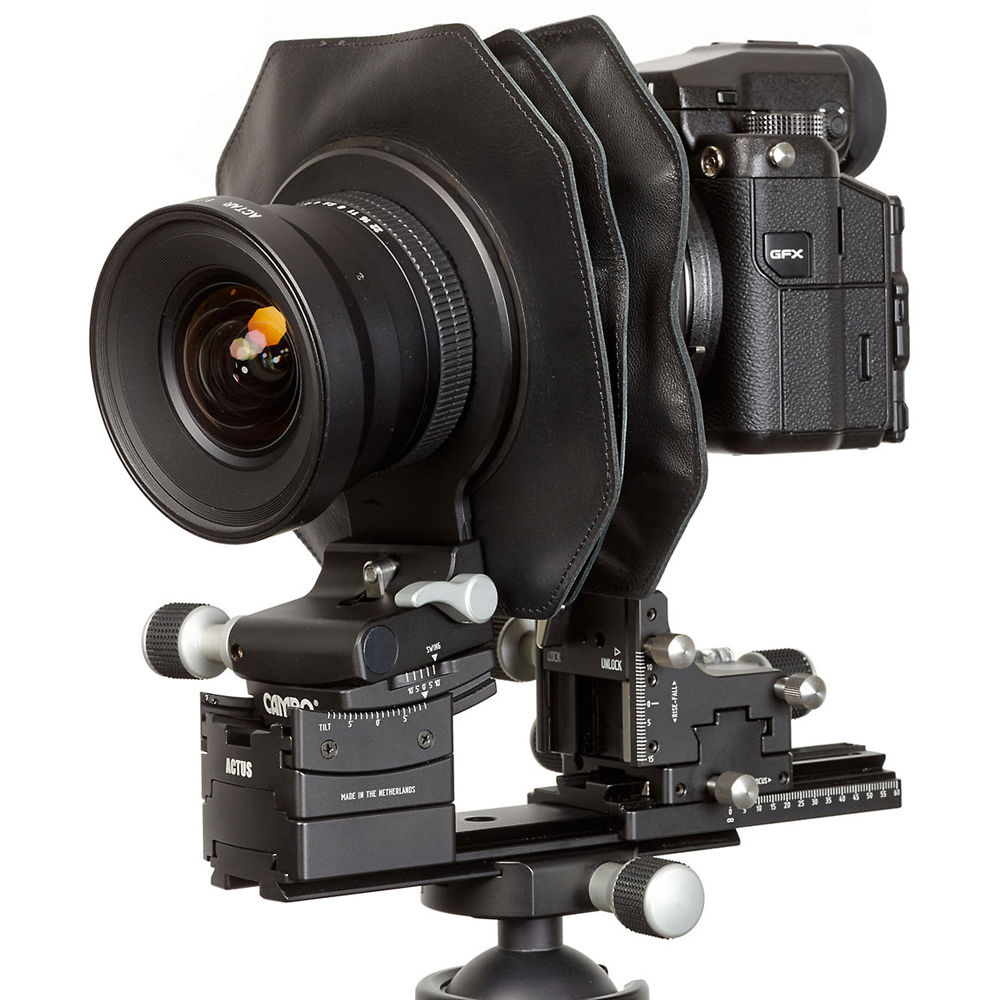

Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-GFX View Camera Body from Cambo effectively transforms your medium format mirrorless camera into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a Fujifilm GFX with a variety of lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates can be added depending on your desired lens type, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each. Additionally, besides the included GFX bayonet mount, other optional smaller format camera bayonet mounts can be used in conjunction with the optional AC-78E Bayonet Holder.
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.
- Revised rear standard features geared horizontal shift along with a removable bayonet holder that has been specifically designed for the physically larger mount size of the GFX camera system.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The included Fujifilm GFX camera bayonet mount allows you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.

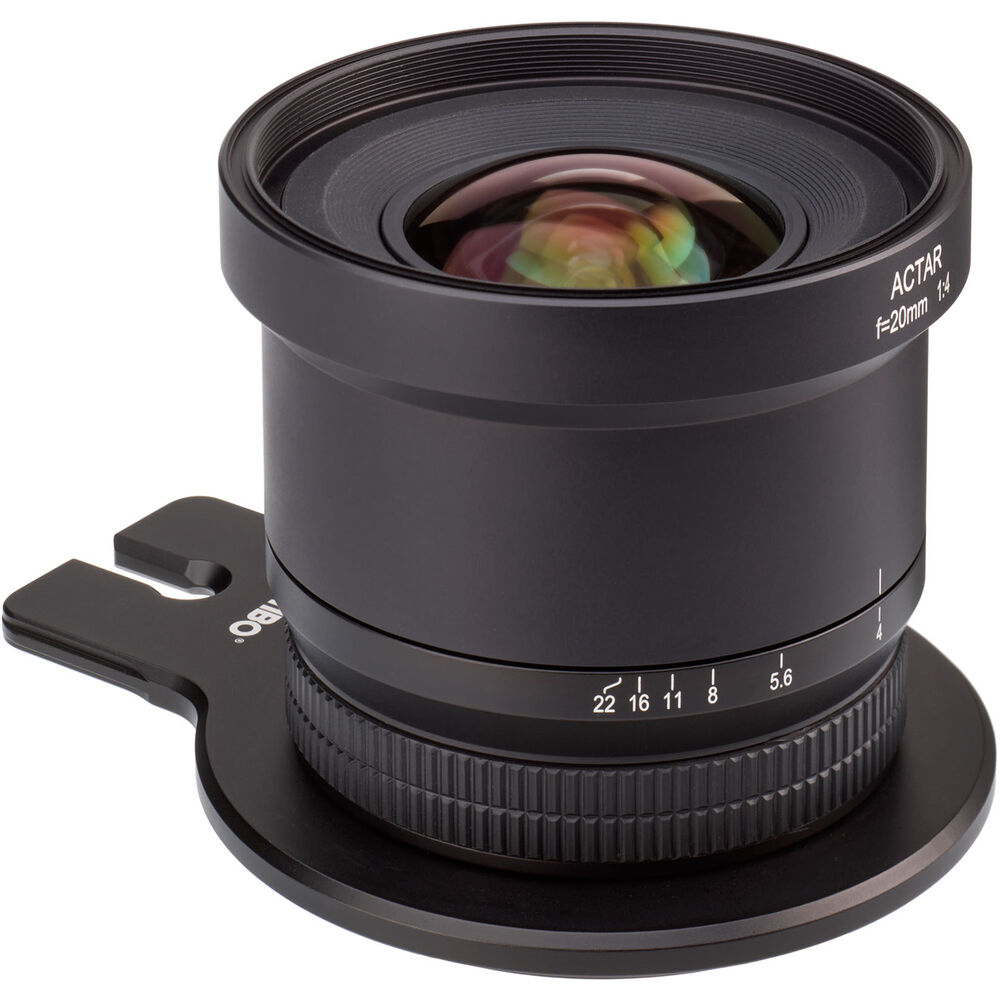

Designed for use in interior, landscape, and architectural photography, this ultrawide-angle ACTAR-20 20mm f/4 Lens from Cambo comes permanently mounted to an Actus System-compatible lens plate, converting your DSLR or mirrorless camera into a view camera. The lens' optical design, which includes 16 elements in 11 groups, produces images with almost no geometrical distortion. Additionally, the lens' 68mm image circle allows for horizontal shifts of 17mm to each side with a full-frame sensor and 8mm shifts when used with the FUJIFILM GFX 50 and GFX 100 series cameras.

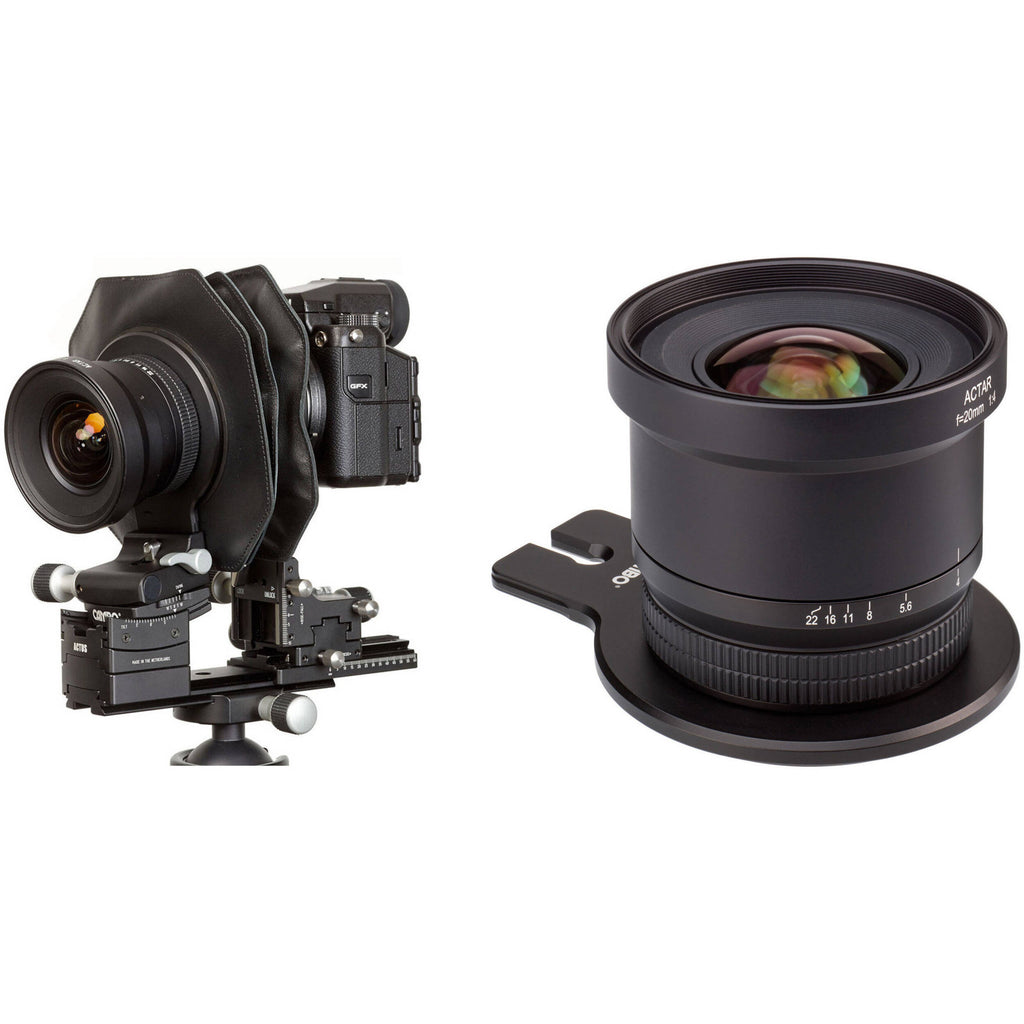

In the Box
- Cambo ACTUS-GFX View Camera Body with Fujifilm GFX Bayonet Mount (Black)
- Cambo AC-210 Standard Bellows for ACTUS
- Cambo AC-315 Standard Monorail for ACTUS Cameras (6.1")
- Cambo AC-792 Bayonet Holder for FUJIFILM G
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Cambo ACTAR-20 20mm f/4 Lens with Lens Plate
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year
Cambo ACTUS-GFX View Camera Body with Fujifilm GFX Bayonet Mount (Black) Specs
| Camera Type |
View camera body for DSLR or mirrorless capture
|
| Lens Mount |
Compatible with optional ACTUS-B lensplates
|
| Camera Mount |
Fujifilm GFX camera bayonet mount
Compatible with additional optional ACTUS camera bayonet mounts via optional AC-78E Bayonet Holder |
| Monorail Length |
6.1" / 155 mm (standard AC-315 monorail)
|
| Bellows Extension |
4.9" / 125 mm (standard AC-210 bellows)
|
| Focusing System |
Quick slide adjustment, geared fine-focus adjustment
Up to 5.3" / 134 mm travel with Fujifilm GFX mount |
| Mounting |
Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail |
| Dimensions |
6.0 x 4.5 x 6.7" / 152 x 115 x 171 mm
|
| Weight |
2.5 lb / 1150 g
|
| Package Weight |
3.8 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.1 x 6.5"
|
Cambo ACTAR-20 20mm f/4 Lens with Lens Plate Specs
| Focal Length |
20mm
|
| Maximum Aperture |
f/4
|
| Minimum Aperture |
f/22
|
| Image Circle |
68mm at f/4
|
| Optical Design |
16 Elements in 11 Groups
|
| Filter Size |
82 mm (Front)
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
1.7 lb / 750 g
|
| Package Weight |
2.375 lb
|
| Box Dimensions (LxWxH) |
9.6 x 8 x 5.2"
|
