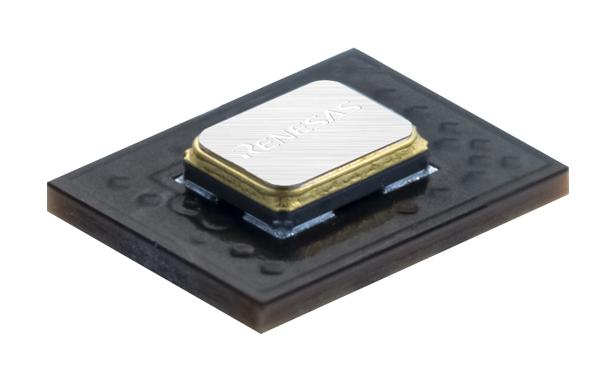

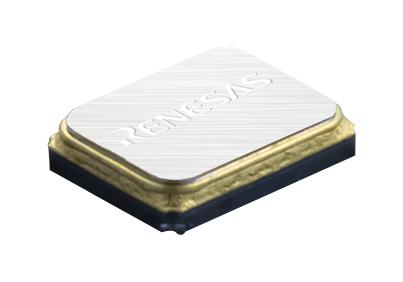

XK13L161L322L644I is a XK series ultra-low phase noise quartz-based PLL oscillator. It is a second-generation follow-on to the XF ProXO high-performance oscillator. The device is often referred to as ProXO II. It uses internal regulators to provide excellent PSNR characteristics. The device is offered in a range of industry standard package footprints. The device can be factory programmed with up to three frequencies and/or output types that are selected by the 3-level FS pin. Typical applications are 10G to 800G Ethernet, 100G to 400G OTN, 3G to 24G SDI broadcast video, servers, switches, storage, accelerators, NICs, HBAs.
- 55fs RMS typical phase jitter (12KHz to 20MHz) at 156.25MHz
- 50MHz to 1250MHz output frequency
- 3.3V ±5% voltage rating
- Temperature rating range from -40 to +85°C
- Total stability (including temperature, power supply, and aging) is ±30ppm
- LVPECL output type
- 2.0 x 1.6mm package
Product details
| Frequency:
644.53125MHz
|
| Supply Voltage Min:
3.135V
|
| Supply Voltage Max:
3.465V
|
| Digital IC Case:
-
|
| No. of Pins:
6Pins
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| Product Range:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
XK13L161L322L644I |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
