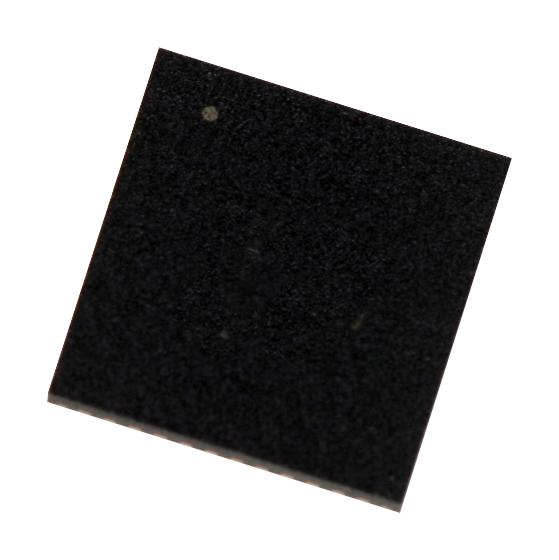

- Single cell switch mode battery charger with power path management in 30 pin QFN package
- Power management function, integrated input current limit and input voltage regulation
- Trickle charge function, programmable timer back-up protection
- Analog voltage output IB pin for battery current monitor
- Selectable 4.2V / 4.3V / 4.35V charge voltage with 0.5% accuracy
- Negative temperature coefficient pin for temperature monitoring
- Programmable timer back-up protection
- Thermal regulation and thermal shutdown
- Internal battery reverse leakage blocking
- Integrated overcurrent protection and overvoltage protection for pass-through path
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2636GR-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
