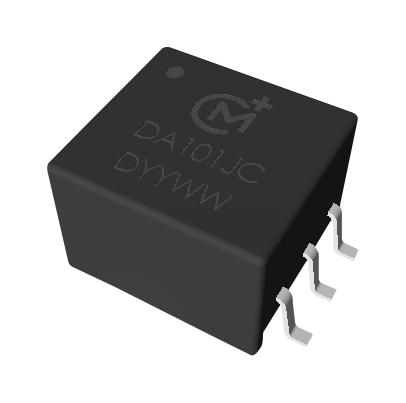

DA101JC-R is a DA100J series surface mount transformer for digital audio data transmission. The digital audio range of transformers is designed to improve the balance of transmitter and receiver circuitry in Hi-Fi equipment, video games and other applications requiring high-performance digital audio transmission. Compliant with AES/EBU recommendations for the digital audio interface, offering optimized shunt capacitance between primary and secondary windings. Capable of operating over the audio data rate frequency range, providing isolation from 50-60Hz noise.
- 6 Pin SM package and compatible with leading chip sets
- 2KVrms isolation
- Industry-standard pinout
- UL 94 V-0 package materials
- Low profile
- Suitable for both 75 & 110 ohm circuits
- Toroidal construction
- Operating free air temperature range -40°C to +85°C
Product details
| Turns Ratio:
1:1
|
| Primary Impedance:
-
|
| Secondary Impedance:
-
|
| Secondary Power:
-
|
| Frequency Max:
-
|
| Isolation Voltage:
2kV
|
| Transformer Applications:
Digital Audio Data Transmission
|
| DC Resistance Primary:
-
|
| DC Resistance Secondary:
-
|
| Transformer Mounting:
Surface Mount
|
| Transformer Terminals:
Solder
|
| Frequency Min:
-
|
| Product Range:
DA100J Series
|
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
DA101JC-R |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
