Description
- Ideal For FM, IR and Digi-Wave
- Portable or Fixed Operation
- Supports Multi-Language
- Simultaneous Interpretation
- Multi Interpreter Monitoring

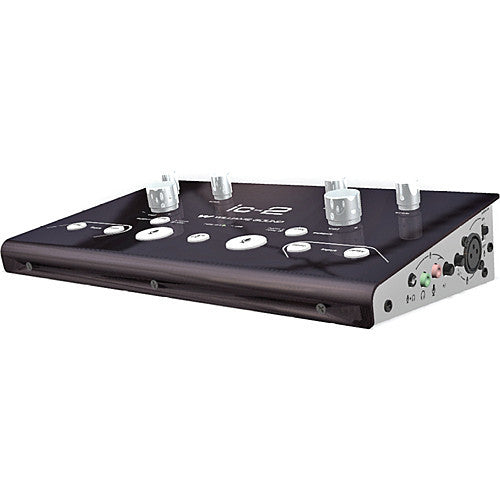

The Williams Sound IC-2 Interpreter Control Console is ideal for use with Williams Sound FM, IR and Digi-Wave transmitters. Well suited for both fixed installation and portable applications, the IC-2 gives interpreters a full control set and flexible routing possibilities.
The IC-2 is capable of simultaneous interpretation of one or more languages, and it allows one or two interpreters to monitor floor or relay sources. Interpreters can easily activate microphone inputs, and route the interpretation signal to one of two language groups. The IC-2 is designed to meet international standards for portable interpretation consoles.
- New CAT 5 audio offers simplified cabling and easy cascading to support additional interpreters.
- Built-in distribution amplifier and mini mixer reduce the need for external equipment and greatly simplify setup.
- Floor language feed-through
- Interlocking microphone and relay output functions
- Soft-touch buttons provide for smoother, quieter operation
- Enhanced flexibility, providing each interpreter with multiple microphone and headset options
- Individual volume and tone controls ensure optimal listening levels
- Easy and lightweight to ship
- Five-year warranty
In the Box
Williams Sound IC-2 Interpreter Control Console (U.S.)
- U.S. Power Supply
- 1 Year Warranty
| Connections | Floor In: 3-pin XLR female jack, balanced (or unbalanced) input with 24k ? differential input impedance, max balanced input is+19dBu IC-2 Bus In / Out: CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2 XLR Microphone Inputs: 3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB,2.4k ? balanced input impedance, maximum balanced input is +19 dBu 3.5mm Microphone Inputs: Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condensermics, variable gain of 40dB. Bias is 3.7VDC through 2.7k ? 3.5mm TRRS Headphone Output: 3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 ? stereo headset. 3.5mm Headphone Output: 3.5mm TRS phone jack, mono or stereo headphone, 8 ? minimum. 190mW max power into 32 ? stereo headset. Norm Out, Relay Out: 3-pin XLR male jack, balanced output. Max output is +19dBu into 600 ? balanced load impedance. |
| Controls | Volume: Left and Right rotary, controls headphone volume Bass and Treble Tone: Left and right rotary with center detent, controls headphone bass and treble tone levels. Mute: Push button, backlit red, mutes left and right mics while pressed. Mic On: Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can onlybe turned on if the other is off. Floor Input, Relay Input: Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other. Relay Output: Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out. Gain Adjust: Rotary gain pots control level of microphone and Floor audio. Phantom Power: Slide switch enables 12VDC Simplex power to XLR microphone. Norm Feedthrough: Slide switch enables Floor feedthrough to Norm Out XLR jack. Relay Feedthrough: Slide switch enables Floor feedthrough to Relay Out XLR jack. Ground Lift: Slide switch disconnects Chassis and Audio Grounds internal to the console. |
| Frequency Response | 45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble |
| Crosstalk | >63dB @ 1kHz |
| Tone | Bass: +12dB Boost or -12dB Cut @ 100Hz Treble: +12dB Boost or -12dB Cut @ 10kHz |
| Signal to Noise Ratio | >82dB @ 1kHz |
| THD & Noise | <0.5% THD @ full power |
| Indicators | Peak Level Indicator: Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking. Relay Output in Use Indicator: Yellow LED on front panel indicates when Relay Output is in use. |
| Power | External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A |
| Dimensions (HxWxD) | 10 x 6.35 x 2.45" (25.4 x 16.1 x 6.2cm) |
| Weight | 3.4 lbs (1.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 5.7 lb |
| Box Dimensions (LxWxH) | 14.6 x 10.4 x 4.0" |
