Description

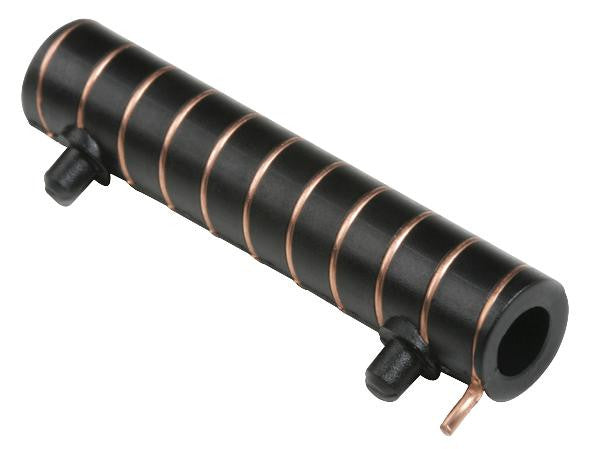

The W3127 from Pulse Engineering is an ISM 433MHz helical antenna.
- Plastic supported helical antenna
- 35.35mm length and 7mm diameter
- 1.8g weight
- Mounting on top of the PWB
- Through hole mechanical support pegs
- Feed contact by soldering via PWB hole
- Frequency range from 433MHz to 435MHz
- Maximum gain is -2.9dBi
- Minimum return loss is -15dB
- Impedance is 50 ohm
Applications
Wireless
Product details
Input Impedance | 50ohm |
Antenna Applications | ISM |
Antenna Polarisation | - |
Antenna Mounting | - |
VSWR | - |
Product Range | - |
Frequency Max | 435MHz |
Antenna Type | ISM Band |
Frequency Min | 433MHz |
Input Power | - |
Gain | - |
Other details
Brand | PULSE ENGINEERING |
Part Number | W3127 |
Quantity | Each |
Technical Data Sheet EN | |
Product Change Notice EN |
